9CH 5A DC 12V CCTV Surveillance Camera Power Supply Box

ITEM DESCRIPTION:

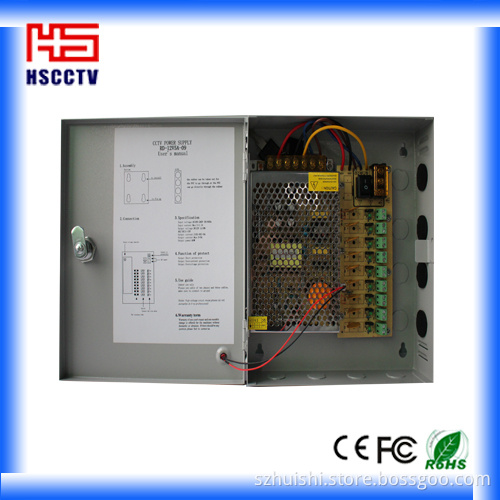

This Power box is a 12V DC nine camera regulated power supply. It is ideal for security camera, and CCTV applications, offer a more professional alternative to individual power adapters. PWD91A distributes 12 V DC power to nine (9) sets of DC power terminals, each having a voltage present indicator LED. Surface mountable metal enclosure with ample knockouts for easy wiring; Hinged cover also features with key lock that prevent unauthorized access.


Specifications:
1. Input power: AC90-160v, 5A, 50/60HZ
2. Output power: DC12V 5A MAX
3.9 channel output
4. The fuse of output is rated at 250Vac / 3.15A
5. The fuse of input is rated at 250Vac / 4A
6. Working temperature: -14~86
7. Storage temperature: -4~140

Features:
Power supply for monitored control viedo camera,
Power supply can break fuse automatically.
Over current, over voltage protection
LED indicator for each Channel
