Dog Training Products/Dog Training Collar, Electronic Pet Training Products

• 100 level of vibration
• 100 level of static(optional)
•  Ideal for all dogs from 5 to 60KG
•  Nylon strap's length adjusts from 13" to 22"
• The system can be used for 1 or 2 dogs (optional)

Users Manual for Transmitter

• To install the batteries, open the battery cover
• The battery cover is at the back of the transmitter
• Open by sliding the cover down
• Install the batteries (2×4LR44/6V) - ensure the polarity is correct
• The transmitter will be TURN ON automatically
• Press the buttons one by one - the LCD images will change
• Press the up and down buttons on right hand side to set level
• Choose channel 1 or 2 for the first or the second receiver
• The LED light can be used for giving training signals
• The transmitter will go into STANDBY MODE if not operated for 2 minutes and will TURN OFF if not operated for 5 minutes
• In STANDBY MODE, press any button (except LED light button) to wake it up
• To TURN ON the transmitter, hold mode button at least 5 seconds

Power Saving

• The receiver will TURN OFF if it is unused for 4 minutes
• Any movement will activate the receiver into STANDBY MODE
• The transmitter will go into STANDBY MODE if there is no operation after 2 minutes and turn off 5 minutes

Connect the transmitter with the receivers

Before using this system, please connect your transmitter with your receivers.

• Install the battery(2×4LR44/6V) in the transmitter and ensure the polarity is correct.
• Adjust the channel button to the right one you want to stay.
• Install the batteries(2×AAA 1.5V) in the receiver (please refer to how to install the batteries in receivers)
• There is a beep right after installing the batteries in the receiver.
• Press the Launch button from the transmitter to encode the transmitter and the receiver immediately. There is a beef again from the receiver if you encode successfully.
• Replace cover and tighten metal probes.
• If there is no response from th receiver,reinstall the batteries from the receiver and press launch button again.
• This system could train up to 2 dogs at the same time.

To encode different dogs, just change to different channel and repeat the procedure as described again.

Product Including

1 × Transmitter                          2 × Short metal probes

1 × Dog collar                            2 × Long metal probes

2 × Long metal probes                2 × Long metal probes

2 × Long metal probes                2 × AAA / 1.5V batteries

Weights


Transmitter weight    44g

Receiver weigth      50g

Gift weight    0.45g

Package

Transmitter:12.8*4.8*2.8cm
Receiver:7.0*4.0*3.40cm

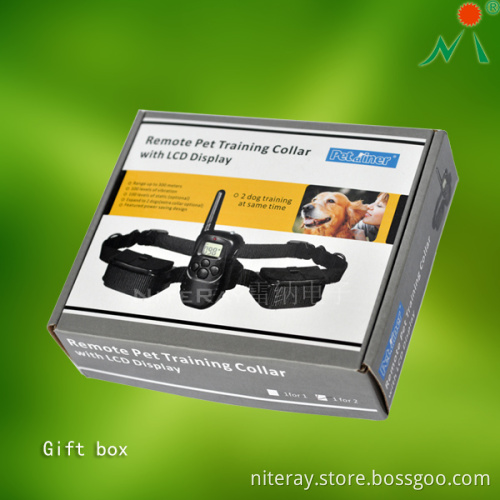

Gift box:16.5*13.5*4.5cm
