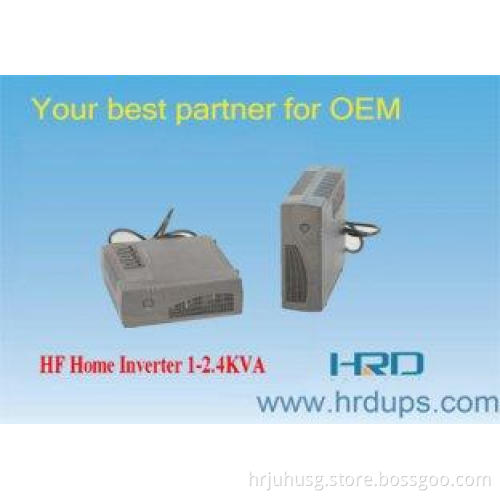

HFHOME INVERTE1-2.4kva
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenhen China |
|---|
Introduction:
This is a compact HF inverter system for home and office appliances. Its selectable wide and narrow input voltage switch features flexibility for users. It is perfect to connect either generators or computer-related devices. It’s a green substitution for generators without air pollution. It also provides overload and short circuit protection.
Main Features:
1) Compact and light weight
2) Modified sine wave output
3) High efficiency
4) Voltage overload protection
5) High output current surge
6) Low voltage alarm / shut down
7) Input and output fully isolation
8) Low power consumption
9)Generator compatible
|
Specifications |
||||
|
Model |
HF Inverter 1K |
HF Inverter 1.2K |
HF Inverter 2K |
HF Inverter 2.4K |
|
capacity |
1000VA/600w |
1200VA/720W |
2000VA/1200w |
2400VA/1400w |
|
INPUT |
||||
|
Nominal Voltage |
220/230/240VAC |
|||
|
Acceptable Voltage Range |
162-290VAC(UPS mode)/90-280VAC(INV.mode) |
|||
|
Frequency Range(Batt.Mode) |
50/60Hz(auto sensing) |
|||
|
Ouput |
||||
|
AC Voltage Range |
220v/230v±10% |
|||
|
Frequency Range(Batt.Mode) |
50Hz ± 1Hz |
|||
|
Transfer Time |
10 ms typical |
|||
|
Waveform(Batt.Mode) |
Simulated Sine Wave |
|||
|
BATTERY |
||||
|
Battery Voltage |
12VDC |
24VDC |
||
|
Floating Charge Voltage |
13.4VDC±2% |
26.8VDC±2% |
||
|
Low Battery Alarm Voltage |
10.8VDC±2% |
21.6VDC±2% |
||
|
Shutdown Voltage |
10.0VDC±2% |
20.0VDC±2% |
||
|
Overcharge Protection |
15.0VDC±2% |
30.0VDC±2% |
||
|
Maximum Charge Current |
10A |
10A/20A |
10A |
10A/20A |
|
PROTECTION |
||||
|
Full Protection |
Overload and short circuit protection |
|||
|
INDICATORS |
||||
|
Line Mode |
Green lighting |
|||
|
Battery Mode |
Yellow lighting |
|||
|
Low Battery |
Yellow flashing every 2 seconds |
|||
|
Shutdown Mode |
Yellow flashing every 5 seconds |
|||
|
Charging Mode at Power on |
Green flashing every 2 seconds |
|||
|
Charging Mode at Power Off |
Green flashing every 5 seconds |
|||
|
Overload |
Red flashing for 0.5 sec.every second |
|||
|
Overcharging |
Red flashing every 5 second |
|||
|
Fault |
Red lighting |
|||
|
ALARM |
||||
|
Low Battery |
Sounding every 2 seconds |
|||
|
Overload |
Sounding every 0.5 seconds |
|||
|
Over Temperature |
Continuously sounding for 30 minutes, then shutdown |
|||
|
Fault |
Continuously sounding for 30 minutes, then shutdown |
|||
|
PHYSICAL |
||||
|
Dimension, D X W X H(mm) |
293×231.5×82.5 |
|||
|
Net Weight(kgs) |
2.35 |
2.55 |
||
|
OPERATING ENVIRONMENT |
||||
|
Humidity |
O -90% Relative Humidity(Non-condensing) |
|||
|
Operating Temprature |
0℃to 40℃ |
|||
|
Storage Temperature |
-15℃to 50℃ |
|||
