Modular Portable Commercial Buildings with Sandwich Panel

Modular Portable Commercial Buildings with Sandwich Panel

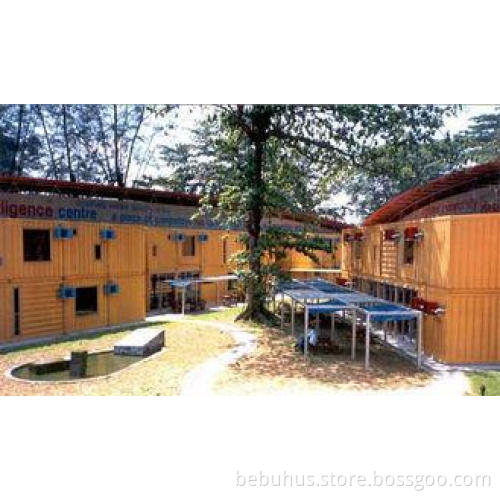

Project Name: Phase Zero Incubator Park

Product Usage: The lobby is mainly used for company’s exhibition, conference or party in the park. The space of module had been divided as different sizes according to the tenant’s requirement in order to accommodate different IT enterprises.

Specs: 5700 square meters

Material Quality: Prefab module

Installation and Transportation: Factory assembling, Trailer transport, Install on site.

It includes a 300-square-meter’s lobby and 300 pcs of 6mx3m modular spaces. These modular spaces are joined by corridor and covered with red special roof with unique design. The partition wall between modules can be set up or moved as required in order to meet the requirements of different growth stage corps in the park so that the project is very popular for the tenants.

Specifications of Each Unit:

I. Dimension(mm)&Weight(kg)

L=6055mm, W=2435mm, H=2790mm

II. Steel Frame: Galvanized Steel Frame with Marine Paint Finishes

Load bearing - floor load: max. load capacity 2.0 kN/m² (200 kg/m²)

Capacity - wind load: 25 m/s (90 km/h)

III. Wall : 50 - 100mm thick Sandwiched Panel

IV. Insulation : 50-100mm thick Rockwool or Neopor EPS

V. Door: 900 x 2100 mm Alum. Frame Metal Door or PVC Door

VI. Windows: 800 x 1000 mm Alum. Frame or PVC Window

Competitive Advantage:

Knock-down Panel wall saves transport and storage space

Top and bottom are pre-assembled in the factory in order to minimize the on-site work

With firm structure, the earthquakes and typhoons can be resisted

With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.

Modular design, be linked on unlimited extension

Easy to be repaired and maintained for high standardization.

Life time 30 years.
