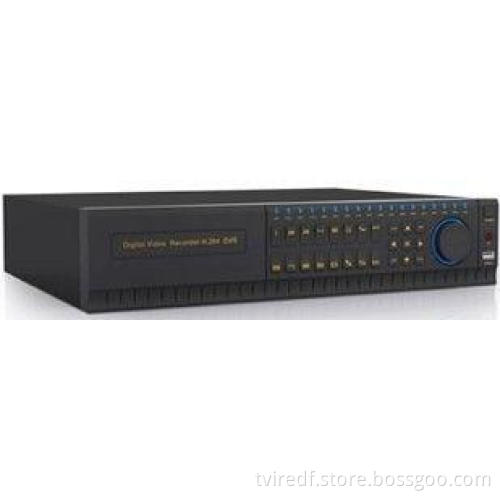

Real Time 32ch Full D1 DVR Support 3G With HDMI
Model: LS-DVR5032M /LS-DVR5032S
Quick Detail:
1)Display:1/4 /9/16/25/32 optional
2)Support HDMI and Audio input
3)Operation Mode:preview, record, playback, backup, network
Key Features:
32CH video input
Support 4/8 SATA HDD
True color GUI, windows style, easy to use
Multi-mode recording: manual, continuous, motion, sensor
Search: time/calendar,events(alarm, motion)
Backup: USB, DVDRW(Sata), IE, CMS; support multi-file, file cutting when backup
Pentaplex: live, record, playback, backup and remote operation
DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
Dual stream technology to encode recording stream and network stream respectively.
User can adjust network stream to fit bandwidth without changing recording quality
Multi-user online simultaneously
HDMI 1080P output
Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
Cell phone: iPhone, iPad, Android, Blackberry, Windows CE/Mobile
Complete SDK function, easy to integrate with other applications
Accessory:
1. IR controller X1
2. USB mouse X1
3. Power adapter: input: 100V-240V~50/60Hz 0.6A; output:12V/2A
4. Screw for HDD installation
5. 2 pin terminals
Specifications:
|
Model |
LS-DVR5032M |
||
|
System |
User Interface |
Graphic User Interface (OSD) |
|
|
OS |
Embedded Linux |
||
|
Operation Mode |
preview, record, playback, backup, network |
||
|
Password Security |
Multi-level user management |
||
|
A/V Input |
Video input |
32 in, BNC |
|
|
Audio input |
2 in, BNC |
||
|
A/V Output |
HDMI output |
Supports |
1024X768,1280X1024, 1366X768,720P,1440X900,1080I,1080P |
|
VGA output |
Supports |
||
|
Display |
1/4 /9/16/25/32 optional |
||
|
Video standard |
PAL/NTSC |
||
|
Loop |
NO |
||
|
CVBS main output |
1 out, BNC; Resolution: PAL:704*576, NTSC: 704*480 |
||
|
Spot output |
1 out, BNC |
||
|
Audio output |
1 out, BNC |
||
|
A/V encoding parameters |
Video compression |
H.264 |
|
|
Display frame rate |
PAL:800 fps(32 x 25 fps); NTSC:960 fps(32 x 30 fps) |
||
|
Recording frame rate |
PAL:800 fps(32 x 25 fps); NTSC:960 fps(16 x 30 fps) |
||
|
Video encoding resolution |
PAL:D1(704X576)/HD1(704X288)/CIF(352X288) NTSC:D1(704X480)/HD1(704X240)/CIF(352X240) |
||
|
Video frame rate |
PAL: 1-25FPS NTSC:1-30FPS |
||
|
Video bit rate |
D1:768-1536Kbps,HD1:512-1280kpbs, CIF:384-768kbps,QCIF:192-384kbps |
||
|
Stream Type |
Video & Audio/Video |
||
|
Audio compression |
ADPCM |
||
|
Recording mode |
Always/Schedule/Alarm recording/Motion detection recording |
||
|
Video search |
Time/Channel/Event |
||
|
Audio bit rate |
8—32kbps |
||
|
Dual-stream |
Supports |
||
|
Mobile phone Monitor |
Supports Android phone/iPhone/iPad |
||
|
Recording resolution |
16CH D1 Recroding + 16 CH D1 Realtime Playback |
||
|
Playback simultaneously |
1-4CH optional |
||
|
HDD |
Type |
4 piece SATA |
|
|
Maximum capacity |
3TB for each Sata connector |
||
|
External connectors |
Voice talk |
YES |
|
|
Record mode |
Audio & Video recording simultaneously |
||
|
Network protocol |
Supports IE/PPPoE/DDNS/DHCP |
||
|
Domain name server |
Support 3322, dyndns, no-ip, changeip, dnsexit domain name server as default value. |
||
|
Network |
2 RJ45 10M/100M/1000M |
||
|
Serial port |
2 RS-485 serial port, 1 RS-232 serial port |
||
|
E-SATA Connector |
Supports |
||
|
USB Connector |
2 USB |
||
|
Firmware update |
Support USB update/Network update |
||
|
Alarm input |
16 in |
||
|
Alarm output |
4 out |
||
|
Others |
Operation Temperature |
-10℃--+55℃ |
|
|
Operation Humidity |
10%--90% |
||
|
Power supply |
ATX |
||
|
Chassis |
Standard 1.5U |
||
|
Dimension |
435mm (W)×440mm (D)×70mm (H) |
||
|
Weight(without HDD) |
≤5Kg |
||
