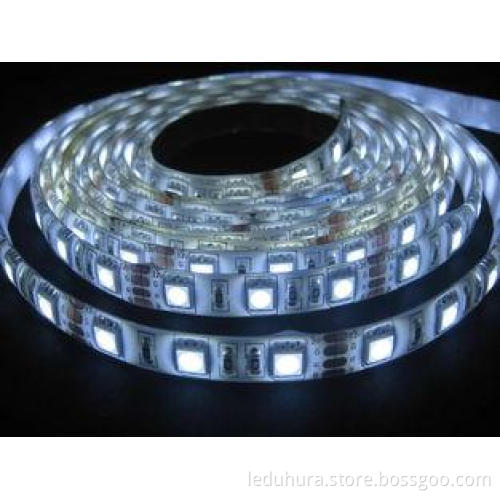

72W SMD5050 60LEDs DC12 DC24V Eco - Friendly Warm White LED Flexible Strip Lights
Description:
LED Strips SMD5050 60LEDs
|
Part No |
CCT |
Beam Angle |
LED Power |
Lumen (Per M) |
Lumen (Per Roll) |
|
P6-C072-111 |
3000±200K |
140° |
72W |
800lm |
4000lm |
|
P6-C072-311 |
4000±200K |
140° |
72W |
900lm |
4500lm |
|
P6-C072-811 |
6000±200K |
140° |
72W |
960lm |
4800lm |
|
P6-C072-A11 |
RED |
140° |
72W |
360lm |
1800lm |
|
P6-C072-B11 |
Yellow |
140° |
72W |
360lm |
1800lm |
|
P6-C072-C11 |
Blue |
140° |
72W |
360lm |
1800lm |
|
P6-C072-D11 |
Green |
140° |
72W |
450lm |
2750lm |
|
P6-C072-I11 |
Orange |
140° |
72W |
360lm |
1800lm |
|
P6-C072-F11 |
RGB |
140° |
72W |
440lm |
2200lm |
Features:
• Input Voltage: DC12V or DC24 (DC48V can be done by special reqirement)
• CRI: >80
• Waterproof: IP33(non-waterproof),IP65, IP66, IP68
• Operating Temperature: -20℃~50℃
• Life: 50,000 hours (Ta=20℃)
• Materials: Aluminum/Milky Polycarbonate
• LED Type: SMD5050
• Size: L5000*W10*H2.2mm
• Net Wight: 0.500kg
• UV and IR free
• Excellent cooling system
• Green and eco-friendly without mercury
• Energy-saving
• Color rendering index:80
• Optional 1~10v dimming power supply
Applications:
• Cove and contour
• Vehicle interiors
• Backlighting
Aperture Illumination:
Spectral Distribution Graph:
Fixed Mode:
Dimming system connection:
Package Information:
Outer Carton:230x230x320mm
Inner Box:220*220*15mm
Weight/BOX:0.9KG
Quantity:100meters/CTN
Weight/CARTON:18KG
