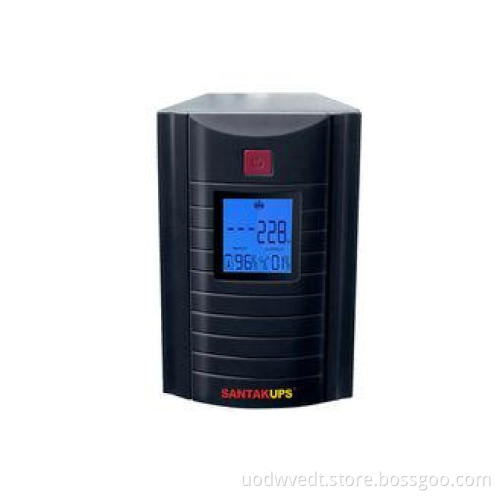

LCD Display Line Interactive UPS 2000VA , Protection For Computer
1. Modified sine wave;
2. Microprocessor control guarantees high reliability;
3. Auto restart while AC is recovering;4. Equipped with Boost and Buck AVR to stabilize input voltage;
5. Trendy LCD for Detailed Real-Time UPS Status Display;
6. Off-mode charging;
7. Built-in DC start function enables UPS to be started up without AC power supplied;
8. Optional USB/RS-232 communication port and RJ-11 phone line surge protection.
Applications:
Line interactive UPS is the perfect protection partners for computer.- Workstations and POS system.- Widely used in municipal, bank, postal coupons, communication, - Transportation, radio and television, and power, and public hospital, industrial control, defense, etc.- The computer room, data center, and the server for electric power - Environmental requirements of network equipments, strict communication and information.
Specifications:
|
Model |
K1000VA |
K1200VA |
K1500VA |
K2000VA |
||||
|
Capacity |
VA/W |
1000VA/600W |
1200VA/720W |
1500VA/900W |
2000VA/1200W |
|||
|
INPUT |
Voltage |
110/115/120VAC or 220/230/240VAC |
||||||
|
Voltage Range |
81-145VAC / 150-290VAC |
|||||||
|
OUTPUT |
Crest factor |
3:1 |
||||||
|
Voltage |
110/115/120VAC or 220/230/240VAC |
|||||||
|
Voltage Regulation |
±5% At load <50% |
|||||||
|
Frequency |
50HZ or 60HZ |
|||||||
|
Frequency Regulation |
±1 HZ |
|||||||
|
Output Waveform |
Modified sinewave |
|||||||
|
BATTERY |
Battery Type&Number |
12V 7AH*2 pcs |
12V 9AH*2 pcs |
|||||
|
Backup time(at a PC load with 15’ monitor) |
40 minutes |
|||||||
|
Recharge Time |
6 hours to 90% |
|||||||
|
TRANSFER TIME |
Typical |
2-6 ms |
4-8 ms |
|||||
|
INDICATOR |
AC Mode |
LCD lighting |
||||||
|
Battery Mode |
LCD indication |
|||||||
|
LCD lighting indicating battery capacity |
||||||||
|
Fault |
Red LCD lighting |
|||||||
|
AUDIBLE ALARM |
Battery Mode |
Sounding every 10 seconds |
||||||
|
Low Battery |
Sounding every second |
|||||||
|
Overload |
Sounding every 0.5 second |
|||||||
|
Battery replace |
Sounding every 2 second |
|||||||
|
Fault |
Continuously Sounding |
|||||||
|
PROTECTION |
Full Protection |
Discharge, Overcharge and Overload Protection |
Discharge, Overcharge, Short-Circuit and Overload Protection |
|||||
|
PHYSICAL |
Dimension D*W*H(mm) |
350*120*188 |
||||||
|
Net Weight(kg) |
10.5 |
11.2 |
15 |
17 |
||||
|
ENVIRONMENT |
Operating Environment |
0- 40°C,0-90% relative humidity(non-condensing) |
||||||
|
Noise Level |
Less than 40DB |
Less than 45DB |
||||||
|
INTERFACE |
Smart RS-23 |
Supports Windows family,linux,IBM Aix, Sun Solaris,Unix Ware,FreeBSD,HP,UX and MAC |
||||||
|
USB Option |
Windows Family and MAC OS |
|||||||
Competitive Advantage:
1. Microprocessor Control Design Guarantees the high reliability;
2. Boost and Buck AVR for stabilizing input power voltage;
3. Built-in DC start function for starting up itself without AC input power;
4.USB interface Communication Port for transmitting UPS real-time conditions and remote control;
5.Winpower,free software available online for ups real-time monitoring and controlling.
