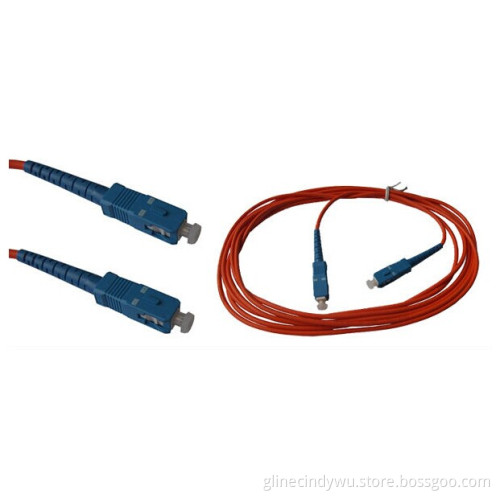

High Quality PVC jacket 3 meters SC/APC Fiber Optical Patch Cord
- Payment Type:
- T/T, L/C, Western Union
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 100000 /Month |
| Supply Ability: | 100000 /Month |
| Payment Type: | T/T,L/C,Western Union |
| Transportation: | Ocean,Land,Air |
SC/APC Fiber Optic Patch Cord Description
1.Using high precision ceramic ferrule
2.Rubbing exactitude and testing completelly
3.Low insertion loss and high return loss
4.High stability and repeatability
5.Ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Item
SM
Polishing
APC
Insertion Loss
≤0.3dB
Return Loss
≥60dB
Changeability
≤0.2dB
Repeatability
≤0.1db
Operating Temperature
-40 to +80°C
Storage Temperature
-40 to +80°C
Durability
1000 times
Tensile Strength
≥100N
Fiber
Single mode fiber: ITU - T G. 652 D
Fiber Attenuation
1310 nm:0.35dB/km;1550 nm:0.2dB/km
Cable Diameter
3.0mm
Cable Jacket Material
PVC
Cores
duplex
Salt Spray
≤0.1dB
Vibration
≤0.2dB (550Hz 1.5mm)
Humidity
≤0.2dB (+25+65 93 R.H.)
Apex Offset
0μm ~ 50μm
Min.Bending Radius
7mm ~ 25mm
Standard
Telcordia GR-326-CORE
Standard housing, ceramic ferrule
