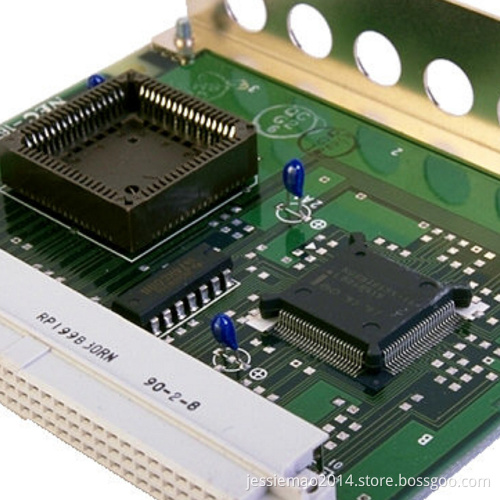

Electronic Product PCBA with Enclosure Assembly and Components Procurement, SMT Technology electronics component module

Get Latest Price

Payment Type:: T/T, L/C, D/A, D/P, Western Union

Incoterm:: FOB

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 5 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Payment Type:	T/T,L/C,D/A,D/P,Western Union
Incoterm:	FOB
Certificate:	UL,ISO,RoHS
Transportation:	Ocean,Land,Air

Product Description

Base material: FR4, PCB,
Layer count: 4 layer board
Board thickness: 1.6mm
Copper thickness: 1oz
Surface finishing: immersion gold
Soldermask color: green

Base materials: FR4, aluminum, FPC and copper
Copper thickness: 0.5oz (minimum)
Copper thickness: 4oz (minimum)
Board thickness: 0.2mm (minimum)
Board thickness: 3.2mm (maximum)
Surface finishing: HAL, ENIG, OSP, gold finger and tin chemistry
Possible soldermask colors: green, black, white, yellow, blue, red and more
Board dimensions: 600 x 1,000mm
Hole diameter: 0.2mm (minimum)
Line width: 0.075mm (minimum)
Line spacing: 0.075mm (minimum)
SMT pitch: 30° (minimum)
Annular ring: 0.05mm (minimum)
Aspect ratio: 11:01

Hole tolerance (PTH): 0.25mm
Hole tolerance (NPTH): 0.15mm
SM tolerance (LPI): Dimension

Specifications:
- Available specifications:
- Surface/hole plating tolerance:
- Electrically test: supported
- RoHS Directive-compliant
- Possibility of SMT device mounting: supported
