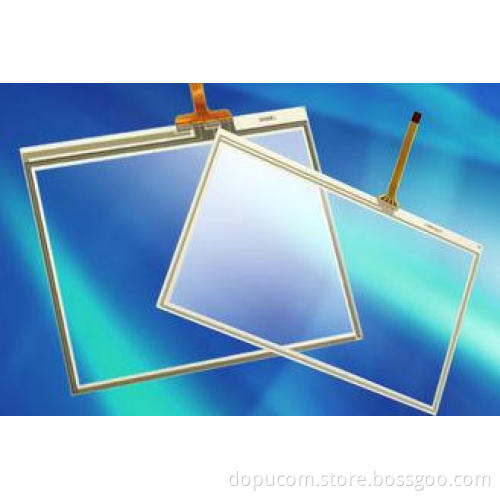

Customized 4W Resistive Touch Panel with USB Cable and Controller
|
Size |
Item NO. |
Outline Dimension (mm) OD |
Viewing Area(mm) VA |
Action Area(mm) AA |
|
4.0” |
DPT-4W-040011 |
89.80*66.90 |
82.30*61.70 |
78.50*57.30 |
|
4.1” |
DPT-4W-041011 |
93.70*74.70 |
83.62*62.50 |
82.62*61.50 |
|
4.3” |
DPT-4W-043011 |
102.00*62.50 |
99.00*57.20 |
98.40*56.60 |
|
DPT-4W-043012 |
104.20*68.00 |
96.70*58.50 |
93.20*55.50 |
|
|
DPT-4W-043013 |
105.00*65.80 |
98.80*57.70 |
95.80*54.50 |
|
|
DPT-4W-043015 |
105.50*67.20 |
98.50*57.70 |
95.50*54.70 |
|
|
4.5” |
DPT-4W-045011 |
105.80*62.36 |
97.80*59.96 |
94.60*57.16 |
|
4.6” |
DPT-4W-046011 |
106.00*84.00 |
98.00*72.00 |
94.00*68.00 |
|
5.0” |
DPT-4W-050011 |
117.00*73.00 |
111.00*67.80 |
108.00*64.80 |
|
DPT-4W-050013 |
117.50*70.00 |
111.00*65.90 |
108.00*65.00 |
|
|
DPT-4W-050014 |
119.00*73.30 |
115.20*67.70 |
109.80*66.50 |
|
|
5.1” |
DPT-4W-051011 |
120.00*73.50 |
113.60*66.00 |
112.60*65.00 |
|
DPT-4W-051012 |
120.20*75.30 |
113.88*65.83 |
110.88*62.83 |
|
|
DPT-4W-051013 |
128.00*74.00 |
117.00*67.00 |
114.00*64.00 |
|
|
DPT-4W-051014 |
117.50*69.80 |
113.60*65.00 |
111.80*64.00 |
|
|
DPT-4W-051015 |
117.50*70.00 |
113.60*65.20 |
110.50*62.50 |
|
|
DPT-4W-051016 |
119.30*73.80 |
113.10*65.50 |
110.70*62.70 |
|
|
5.3” |
DPT-4W-053011 |
106.00*84.00 |
98.00*72.00 |
94.00*68.00 |
|
5.6” |
DPT-4W-056011 |
126.50*100.00 |
116.08*87.51 |
113.08*84.51 |
|
5.7” |
DPT-4W-057011 |
132.50*104.70 |
124.50*95.70 |
116.50*88.70 |
|
DPT-4W-057012 |
154.00*120.00 |
124.50*95.70 |
116.50*88.70 |
|
|
6.0” |
DPT-4W-060011 |
145.20*87.50 |
136.10*76.70 |
132.78*73.27 |
|
DPT-4W-060012 |
147.80*84.50 |
139.80*77.50 |
133.00*73.00 |
|
|
6.2” |
DPT-4W-062011 |
152.95*90.00 |
145.60*81.20 |
139.70*75.90 |
|
DPT-4W-062012 |
155.00*88.20 |
141.40*80.00 |
139.70*78.90 |
|
|
DPT-4W-062013 |
154.30*87.80 |
138.12*77.82 |
135.52*75.22 |
|
|
DPT-4W-062014 |
154.80*86.80 |
140.70*79.70 |
133.50*73.00 |
|
|
DPT-4W-062016 |
155.20*88.20 |
140.70*80.00 |
136.52*76.22 |
|
|
DPT-4W-062018 |
155.20*88.20 |
140.70*80.00 |
135.52*74.72 |
|
|
DPT-4W-062019 |
155.20*88.20 |
138.82*78.53 |
135.82*75.53 |
|
|
DPT-4W-062020 |
155.20*88.20 |
138.82*78.53 |
135.52*75.22 |
|
|
DPT-4W-062021 |
155.00*87.80 |
138.82*78.53 |
135.82*75.53 |
|
|
DPT-4W-062022 |
154.00*87.00 |
140.20*79.10 |
137.00*73.80 |
|
|
DPT-4W-062023 |
154.80*89.00 |
145.80*80.50 |
139.40*73.90 |
|
|
DPT-4W-062024 |
154.80*87.80 |
140.70*80.00 |
135.52*75.22 |
|
|
DPT-4W-062025 |
155.20*88.20 |
138.82*78.53 |
135.82*75.53 |
|
|
DPT-4W-062026 |
155.00*88.00 |
140.50*79.20 |
136.30*75.50 |
|
|
DPT-4W-062027 |
154.80*87.80 |
140.70*80.00 |
135.52*75.22 |
|
|
7.0” |
DPT-4W-070001 |
162.00*97.10 |
155.80*88.40 |
154.80*87.40 |
|
DPT-4W-070002 |
164.90*99.00 |
155.60*89.90 |
150.00*84.80 |
|
|
DPT-4W-070003 |
164.90*99.00 |
155.60*89.90 |
152.60*84.80 |
|
|
DPT-4W-070004 |
165.00*100.00 |
155.60*89.90 |
150.00*83.50 |
|
|
DPT-4W-070005 |
165.00*104.00 |
154.40*93.44 |
152.40*91.44 |
|
|
DPT-4W-070006 |
165.00*100.00 |
159.20*91.00 |
152.90*85.30 |
|
|
DPT-4W-070007 |
165.00*100.00 |
155.56*87.94 |
152.56*84.94 |
|
|
DPT-4W-070008 |
165.00*100.00 |
155.95*89.00 |
153.30*86.10 |
|
|
DPT-4W-070009 |
164.50*99.50 |
156.00*89.00 |
154.00*86.80 |
|
|
DPT-4W-070030 |
164.70*99.70 |
156.80*91.80 |
152.00*87.00 |
|
|
DPT-4W-070031 |
165.00*100.00 |
155.00*88.00 |
150.40*84.00 |
|
|
DPT-4W-070032 |
165.00*100.00 |
155.80*88.80 |
153.40*85.40 |
|
|
DPT-4W-070033 |
165.00*100.00 |
157.00*89.40 |
152.20*84.00 |
|
|
DPT-4W-070034 |
164.50*99.00 |
156.80*89.75 |
152.30*85.25 |
|
|
DPT-4W-070035 |
161.00*96.50 |
155.00*89.00 |
151.00*84.00 |
|
|
DPT-4W-070036 |
161.00*96.50 |
155.00*88.00 |
151.00*84.00 |
|
|
DPT-4W-070037 |
164.00*96.00 |
160.00*86.00 |
158.00*84.00 |
|
|
DPT-4W-070038 |
164.80*99.80 |
156.90*90.20 |
150.90*84.00 |
|
|
DPT-4W-070039 |
162.00*97.10 |
155.80*88.40 |
154.80*87.40 |
|
|
DPT-4W-070040 |
164.90*99.90 |
155.50*88.50 |
151.50*84.00 |
|
|
DPT-4W-070041 |
164.80*99.80 |
155.60*89.90 |
152.00*85.30 |
|
|
DPT-4W-070042 |
165.00*100.00 |
155.00*88.00 |
153.00*85.50 |
|
|
DPT-4W-070044 |
164.90*100.00 |
156.50*89.00 |
154.08*86.58 |
|
|
DPT-4W-070046 |
164.70*99.80 |
156.00*89.10 |
151.60*84.64 |
|
|
DPT-4W-070048 |
161.30*101.80 |
154.10*87.12 |
153.10*83.36 |
|
|
DPT-4W-070049 |
166.60*92.60 |
160.00*85.10 |
154.10*79.60 |
|
|
DPT-4W-070050 |
164.80*94.80 |
155.50*88.50 |
151.50*84.00 |
|
|
DPT-4W-070051 |
164.80*99.80 |
156.90*89.00 |
153.90*86.00 |
|
|
DPT-4W-070052 |
164.20*99.20 |
156.48*88.98 |
153.50*85.00 |
|
|
DPT-4W-070053 |
164.80*99.80 |
155.00*88.00 |
154.00*87.00 |
|
|
DPT-4W-070054 |
164.80*99.80 |
155.50*86.50 |
152.50*83.50 |
|
|
DPT-4W-070055 |
164.50*99.70 |
155.95*89.00 |
151.50*84.10 |
|
|
DPT-4W-070056 |
164.80*99.80 |
156.50*89.20 |
152.00*82.00 |
|
|
DPT-4W-070057 |
162.00*97.00 |
157.00*90.10 |
154.00*84.10 |
|
|
DPT-4W-070058 |
164.90*100.00 |
157.30*89.70 |
154.68*86.52 |
|
|
DPT-4W-070061 |
164.50*99.70 |
157.30*89.70 |
153.08*84.92 |
|
|
7.1” |
DPT-4W-071011 |
165.00*104.00 |
155.30*94.40 |
150.90*90.00 |
|
DPT-4W-071013 |
165.00*104.00 |
155.24*94.20 |
152.40*91.40 |
|
|
8.0” |
DPT-4W-080021 |
173.00*133.00 |
166.20*125.50 |
162.20*121.50 |
|
DPT-4W-080022 |
192.80*115.00 |
180.80*104.10 |
175.15*97.75 |
|
|
DPT-4W-080023 |
192.80*115.00 |
180.80*104.10 |
173.55*96.65 |
|
|
DPT-4W-080024 |
183.00*141.00 |
170.60*127.10 |
162.20*121.80 |
|
|
8.1” |
DPT-4W-081021 |
192.80*116.90 |
180.10*103.40 |
175.64*98.36 |
|
DPT-4W-081022 |
192.80*116.90 |
180.90*104.20 |
175.45*98.70 |
|
|
DPT-4W-081025 |
192.40*116.60 |
177.70*101.00 |
174.80*98.30 |
|
|
DPT-4W-081026 |
192.30*116.40 |
180.10*103.40 |
175.64*98.36 |
|
|
DPT-4W-081027 |
192.30*116.50 |
180.90*104.20 |
173.85*97.20 |
|
|
8.2” |
DPT-4W-082021 |
216.00*91.50 |
198.00*78.00 |
195.00*75.00 |
|
8.7” |
DPT-4W-087021 |
196.00*130.00 |
188.00*119.00
|
