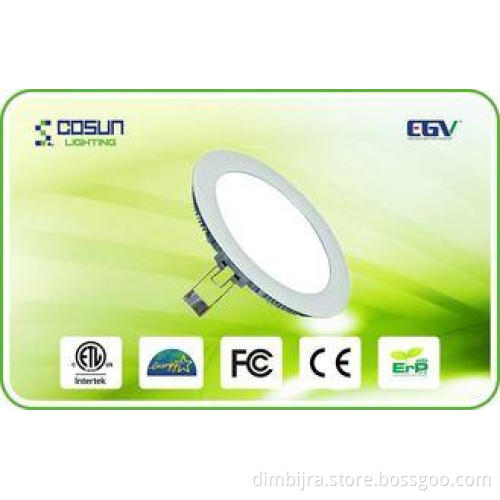

60HZ 765LM Energy Saving LED Downlights For Shopping Mall , 125° Round 6 Inch Downlight
Quick Detail:
Life Span:>40,000h
Lumens:765lm
CCT:3500~6500K
CRI:>80
OEM:Yes
Power Factor:>95%
Wattage:8w
ODM:Yes
Beam Angle:125°
Operation Temp.:-20~50°
IP Rate:IP50
Way to install: Embedded
Certificates:CE, Energy Star, FCC,ERP,ETL
Shape: Round
Description:
* Aluminum with high quality laser dotted guide panel light
* Super size accept customized
* CRI>80
* Beam angle is 125°
* Up to 80% energy saving
* Instant star, no flicking, no humming
* No RF interference
* Environmentally friendly, mercury and lead free
Applications:
1.Meeting room, conference room,communication office
2.Commercial environment, real estate, commercial building,Airport
3.Shopping mall, super market,chain shops, shops, hotel, restaurant
4.office, gallery and home
Specifications:
|
Model |
EGV-03-DL |
EGV-04-DL |
EGV-06-DL |
EGV-08-DL |
||
|
Dimensions(mm) |
115(φ)mm |
145(φ)mm |
180(φ)mm |
240(φ)mm |
||
|
Thickness(mm) |
11mm |
|||||
|
Cut-out Size |
100(φ)mm |
125(φ)mm |
160(φ)mm |
220(φ)mm |
||
|
Main Material |
Al+PMMA |
|||||
|
Light source |
SMD3014 |
|||||
|
LED Qty(pcs) |
50pcs |
70pcs |
90pcs |
150pcs |
||
|
Input Voltage(v) |
AC100-277V,50-60HZ(UL);AC100-240V,50-60HZ(CE) |
|||||
|
Rated Current(A) |
|
1A |
1.2A |
1.5A |
||
|
Output Voltage(v) |
|
12V |
12V |
12V |
||
|
Watts(w) |
5w |
7w |
9w |
15w |
||
|
Lumens(lm) |
425lm |
595lm |
765lm |
1275lm |
||
|
Power factor |
>90% |
|||||
|
Color Temperature(k) |
3500-6500k |
|||||
|
Luminous Efficiency |
80-85 |
|||||
|
CRI |
>80 |
|||||
|
Beam Angle |
125° |
|||||
|
Life Span |
>40,000h |
|||||
|
Operation temp. |
-20~50℃ |
|||||
|
IP Rate |
IP50 |
|||||
|
Way To Install |
Embedded |
|||||
Competitive Advantage:
1.Make the light more brightness
With the high quality optical laser guide panel which material is Mitsubishi and Degussa,
making it effectively protect the picture against fading.
2.Super size,more options
Except standard size 6 inch, we also have 3 inch,4 inch,8 inch,also customized super size
can be 1200*2400mm.
3.Saving energy with Certificates
Low consumption, environment-friendly, has approval with CE, Energy Star,FCC, ERP,suitable for
Europe and America market.
