AU Wall Plug in 6V 3A 18W Output AC Power Adapters for Digi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

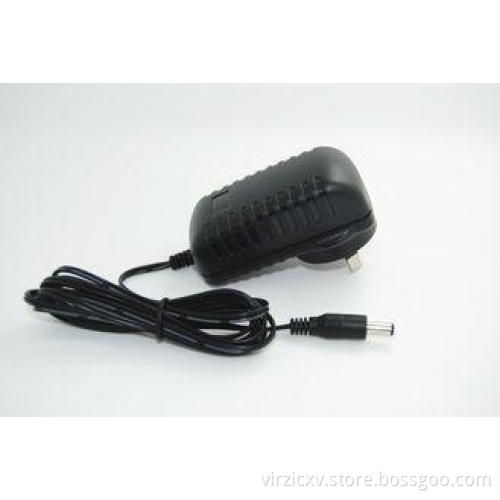

Wall Plugin 6V 3A 18W Output AC Power Adapters Fit for AU with SAA Certificate
Quick Details:
- Input voltage: 100 to 240V AC, 50/60Hz
- Output voltage: 6V 3A
- Power: 18W
- Dimension (L x W x H): 82 x 43 x 30mm
- Socket type: AU plug
- Application: Digital Camera , POS Machine , etc
Description:
1. Surface cosiness, small size and convenient carrying
2. Low cost, high reliability and all cases are covered by ultrasonic
3. Built-in OVP, OCP and SCP
4. Universal input voltage:
a. I/P voltage 100-240VAC; 50/60Hz
b. Turn on delay time≤3s
c. Inrush current≤30A/24V AC
5. O/P:
a. High accuracy and low noice
b. Hold up time ≥20mS
6. Operation model: CV
7. Environment:
a. Operation temperature: 0°C-40°C;5%-90%RH
b. Storage temperature: -20°C-85°C;5%-95%RH
8. Cooling: Natural cooling
9. Energy standard: CEC/ERP
10. Safety standard: IEC/EN60950
11. Insulation: hi-pot, 3,000V AC 60S 10mA
12. Leakage current: 0.25mA (maximum)
13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
14. RoHS compliant
|
Warranty: |
1 year |
|
Certification: |
UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS |
|
Usage: |
Digital Camera, POS Machine, etc |
|
Packaging:
|
a. PE bag+ white box 84pcs/carton b. PE bag without white box 100pcs/carton |
|
Place of Origin: |
China(Mainland) |
|
Brand Name: |
WT |
|
Model Numeber: |
WT0603000 |
|
MOQ: |
500 pcs |
|
Delivery Time: |
15 Days |
|
Payment Terms: |
T/T(30% in advance, 70% the balance must be paid before the delivery) |
|
Supply Ability: |
8000 PCS/Day |
Our Advantages:
- Professional&experienced engineers
- Good quality
- Competitive price
- Intime service
- Free samples available
- About 10 years experiences
- OEM/ODM services are highly welcome
- Flexible to meet dynamic requirements
- High technology
- Short Lead time
- AC input power suitable for the world
- Soft-start current can reduce the AC input impact efficiency
- With short-circuit and overload protection
- Compact size ,light weight
- 100%full-load burning test
- Installed with EMI filter ,minimum wave
- Fashionable design
- Small size
- Low-ripple and noise
- High-efficiency
Some Using Details:
- Do not install power supply in locations with high humidity, dust or strong direct sunlight.
- Connect power supply to the supplied unit.
- Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
- Power supply can only be installed indoors.
- The power supply should be installed in a location with good airflow.
