Industrial Toshiba LCD Display Panels LTA121B860F 800(RGB)
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Japan |
|---|

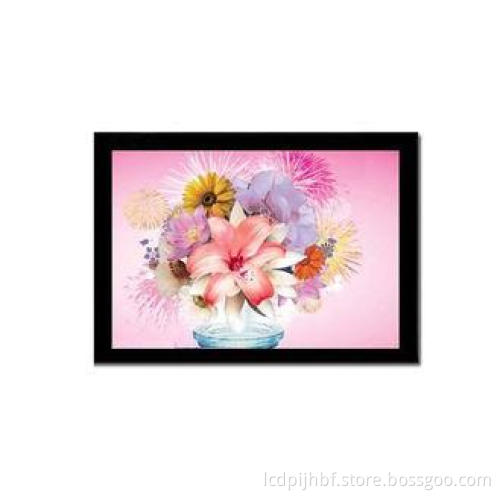

12.1" Toshiba LCD Panel LTA121B860F for Industrial use
Quick Detail
1. Model LTA121B860F
2. Size :5inch
3. View angle: R/L/U/D 60/60/40/60(Deg)
4. 350:1 contrast ratio
5. Brightness 350nit
6. 800(RGB) x600 resolution
7. Dimensions :278.3x 209x 11 (mm)
8. Panel uses: Industrial Use
9. RGB/CCIR656/601 Signal Interface
10. Backlight CCFL
11. Input voltage ;3.3v
Specifications
|
Module number |
LTA121B860F |
|
Resolution |
800(RGB) x600 |
|
Pixel Pitch |
0.1025x 0.3075 (mm) |
|
Active Area |
246 x 184.5 (mm) |
|
View angle |
R/L/U/D 60/60/40/60(Deg) |
|
Mode |
TN |
|
LCD Surface |
Anti-glare,3H |
|
Number of Colors |
16.7M |
|
Electrical Interface |
RGB/CCIR656/601 |
|
Brightness |
350 cd/m2 |
|
Contrast ratio |
350:1 |
|
Outline dimension |
278.3x 209x 11 (mm) |
|
Gross weight |
680g(Typ.) |
|
Backlight |
CCFL |
|
Supply Voltage (V) |
3.3V |
|
Response time |
25(ms) |
|
Operate temperature |
-10-60 (°C) |
|
Storage temperature |
-20-70 (°C) |
|
Package |
Toshiba original package; |
Main Models of Toshiba and other brand as follows:
|
Panel Model |
Brand |
Size |
Resolution |
cd/m2 |
C/R |
Backlight |
|
LTD121C30S |
TOSHIBA |
12.1" |
800×600 |
350 |
500:1 |
CCFL |
|
LTM084P363 |
TOSHIBA |
8.4" |
800×600 |
350 |
250:1 |
CCFL |
|
LTM10C209A |
TOSHIBA |
10.4" |
640×480 |
250 |
250:1 |
CCFL |
|
LTA149B780F |
TOSHIBA |
14.9" |
1280×390 |
400 |
500:1 |
CCFL |
|
LTM08C351 |
TOSHIBA |
8.4" |
800×600 |
350 |
250:1 |
CCFL |
|
LTA121C33SF |
TOSHIBA |
12.1" |
800×600 |
400 |
500:1 |
CCFL |
|
LTD104C11S |
TOSHIBA |
10.4" |
640×480 |
400 |
500:1 |
CCFL |
|
LTD104C11U |
TOSHIBA |
10.4" |
640×480 |
400 |
500:1 |
CCFL |
|
LTD104EA5S |
TOSHIBA |
10.4" |
1024×768 |
180 |
100:1 |
CCFL |
|
LTM10C210 |
TOSHIBA |
10.4" |
640×480 |
400 |
250:1 |
CCFL |
|
LTM10C273 |
TOSHIBA |
10.4" |
800×600 |
250 |
250:1 |
CCFL |
|
LT084AC37000 |
TOSHIBA |
8.4" |
1024×768 |
400 |
400:1 |
WLED |
|
LTA065B0D0F |
TOSHIBA |
6.5" |
640×480 |
400 |
500:1 |
CCFL |
|
LTA070B070F |
TOSHIBA |
7.0" |
800×480 |
0 |
250:1 |
No B/L |
|
LTA084C270F |
TOSHIBA |
8.4" |
800×600 |
400 |
450:1 |
CCFL |
|
LTA084C271F |
TOSHIBA |
8.4" |
800×600 |
400 |
370:1 |
WLED |
|
LTA090B400F |
TOSHIBA |
9.0" |
800×480 |
500 |
250:1 |
CCFL |
|
LTA104D183F |
TOSHIBA |
10.4" |
800×600 |
320 |
450:1 |
CCFL |
|
LTD056ET0S |
TOSHIBA |
5.6" |
1024×600 |
165 |
200:1 |
CCFL |
|
LTD104EA52 |
TOSHIBA |
10.4" |
1024×768 |
|
|
CCFL |
|
LTD104EA5R |
TOSHIBA |
10.4" |
1024×768 |
170 |
100:1 |
CCFL |
|
LTD104EA5W |
TOSHIBA |
10.4" |
1024×768 |
|
|
CCFL |
|
LTD104EAAP |
TOSHIBA |
|
