Waterproof 10mm OPTO / SILAN Outdoor Advertising LED Displa

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Outdoor Advertising LED Display 10mm OPTO/SILAN LED with 7500 nits

Quick Detail:

1. 960×960 mm cabinet dimension;

2. 6×6PCS LED module;

3. 96×96 dots per cabinet pixel;

4. Synchronous control with PC;

5. More than 800Hz refresh rate;

6. CE standard power supply.

Detail Description:

IP65 waterproof steel cabinet, making the display work even in rainy day;

Multifunction card could adjust brightness automatically and transmit sound.

Application:

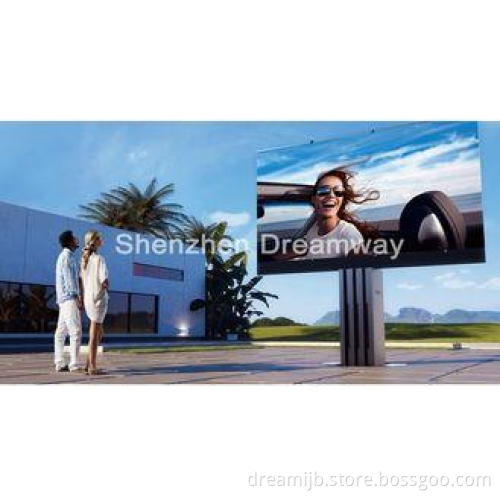

It is used for outdoor advertising, generally installed outside shopping mall, commercial plaze, on park, building, etc.

Specifications:

Pixel Pitch	10mm
LED Composition	1R1G1B
LED Type	DIP346
Pixel	10,000 dots/sq.m
Module Pixel	W 16 × H 16
Module Size	W 160 × H 160 mm
Standard Cabinet Dimension	W 960 × H 960 mm
Cabinet Color	Black
Cabinet Material	Steel waterproof cabinet
Drive Method	1/4 scan constant current
Brightness	≥7500 CD/sq.m
Refresh Rate	≥800Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Span	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Humidity	10%~90%
Control Method	Synchronous control with PC on
Operation System	Win2000 / XP / Vista

Outdoor Advertising LED Display Screen, Full Color Outdoor Advertising LED Display, Waterproof Outdoor Advertising LED Display
