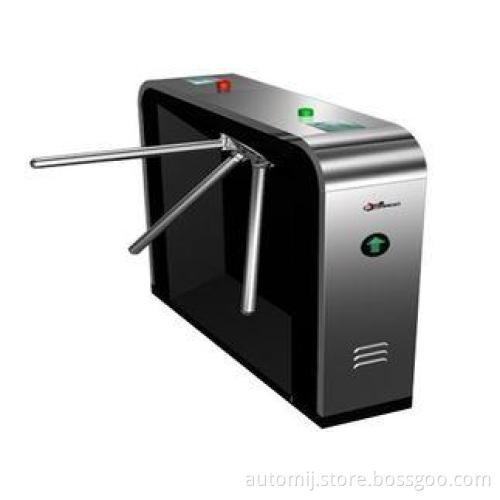

Multi-function Traffic Status Prompt Single Direction Tripod Turnstile Gate for Exhibition
Description:
SJSDZG-3 is widely used in airport, musem, bus station, supermarket, park., etc. It is able to integrate with barcode, magnetic card, IC, ID card to excute access control, time attendance, tolling, etc. The machine is rustproof, durable and can resist external destroy. Also it is able to work with parking management to meet different actual requirement.
Applications:
Bus Station
Exhibition
Airport
Subway
Government
Supermarket
apartment, factory, museum
Park and so on
Specifications:
|
Framework |
304# Stainless Steel |
|
Dimension |
1200*280*980mm |
|
Weight |
70 kgs |
|
Arm length |
510mm |
|
Max Arm load |
80 kgs |
|
Arm working force |
3 kgs |
|
Arm driving way |
Digital |
|
Open time |
0.2 second |
|
Transit speed |
20——30 persons per minute |
|
Temperature |
-10℃—— 50℃ |
|
Relative humility |
≤90%, no-condensation |
|
Communication interface |
RS485, distance ≤1200M |
|
Input interface |
dry contact signal or 12V level signal, or 12V pulse signal with whose pulse width >100ms, driven electricity >10mA |
Competitive Advantage:
1. Single direction or double direction for option
2. A valid lock action can allow one passage at one time
3. Normally open---the machine will unlock when a valid signal is received
4. The gate will lock automatically if passagers do not pass it within giving time. The passing time is adjustable for
different requirement.
5. The arm falls down automatically in case of power off
6. Count and LED digital function (optional)
7. Traffic light guides traffic direction
8. easy to integrated with magnetic card, barcode card, ID card, IC card, etc
9. Memory function
10. standard input/output port to integrate with other systems
