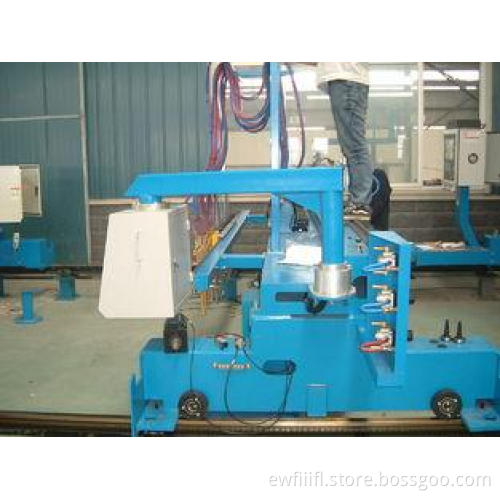

OEM High precision H Beam Production Line / H beam steel making plant By Motor Drive
Quick Detail:
- Model Number:H beam
- Voltage:380V 3 phases
- Usage:assembling the H beam and welding it
- Machine input power:9KW(no welders)
Description:
Adopted with submerge arc welders for beam steel weld and machine gantry is moved by frequency conversion technology, two sets of welding machines are located under gantry separately, welding head is moved vertically by motor, horizontally by manual adjustment, with seam tracking device. Welding flux can be collected and circled automatically.
Applications:
H beam production line consists of CNC multi-head vertical strip cutter, H beam middle spot welding assembly-standing machine, beam mover, cantilever type welding machine, chain type upender, hydraulic reversible frame, hydraulic straighting machine.
Complete assembly, reversal, welding, work-piece transportation, leveling, shot blasting etc course realize automatic production.
Specifications:
.
|
Items |
Specs |
|
|
Models |
ZL-1800 |
|
|
Web plate |
Web height |
200-1800mm |
|
Web thickness |
6-32mm |
|
|
Web length |
4000-15000mm |
|
|
Flange plate |
Flange width |
200-800mm |
|
Flange thickness |
6-40mm |
|
|
Flange length |
4000-15000mm |
|
|
H beam variable angle of cross-section |
Within 20 degree |
|
|
Machine input power |
9KW(no welders) |
|
|
H beam assemble speed |
500-6000mm/min |
|
Competitive Advantage:
- Good outlook
- High precision
- Rigid structure
- Small inertia
-
Stable performance
