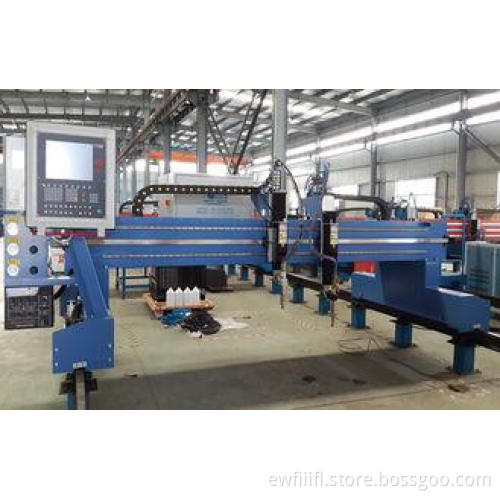

Custom Electrical Auto Plasma / Flame CNC Cutting Machine For Aluminum / Copper / Steel
Quick Detail:
- Dimension(L*W*H): determined by customer
- Certification: CE
- Warranty: ONE YEAR
- Servo system:Japanese Panasonic
- Gear reducer:German NEUGART
Description:
1. German advanced technology
2. German Messer gantry design, with rigid and stable body structure
3. Passed by CE agreement,accord with German DIN2310 standard
4. Machine gantry is processed with furnace annealing and fine processing, long life and machine precision are ensured.
5. CNC and servo, gear reducer and pipe rout systems are from worldwide famous brands
6. IC circuit are used for PCB, high sensibility
7. Electrical & mechanical system and pipe rout are protected well.
8. Owned 9 national patents
Applications:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy,
Specifications:
|
Items |
Specifications |
||||
|
model |
GS-4000II |
GS-5000II |
GS-6000II |
GS-7000II |
GS-8000II |
|
CNC system |
US Hypertherm Micro-EDGE Pro |
||||
|
Drive method |
Double servo driver |
||||
|
Servo system |
Japanese Panasonic |
||||
|
Gear reducer |
German NEUGART |
||||
|
Gas hose |
Italian FITT |
||||
|
Electro-Magnetic valve |
Italian CEME |
||||
|
CNC torch |
Two sets of torch in standard version, but optional for customer |
||||
|
Rail span |
4000mm |
5000mm |
6000mm |
7000mm |
8000mm |
|
Cutting width |
≤3100mm |
≤4100mm |
≤5100mm |
≤6100mm |
≤7100mm |
|
N sets of torch is added, cutting width is reduced by 200N(mm) |
|||||
|
Rail length |
12000mm,but optional for customer |
||||
|
Cutting length |
≤rail length-2500(mm) |
||||
|
Cutting thickness |
2 sets of torch:6-150mm,3-4 sets of torch:6-100mm,above 5 sets of torch:6-50mm |
||||
|
Cutting speed |
50-750mm/min |
||||
|
Machine idle speed |
≤12000mm/min |
||||
|
Cutting quality |
JB/T10045.4-1999 standard,German DIN2310 |
||||
Competitive Advantage:
Good outlook, high precision, rigid structure, small inertia, stable performance.
