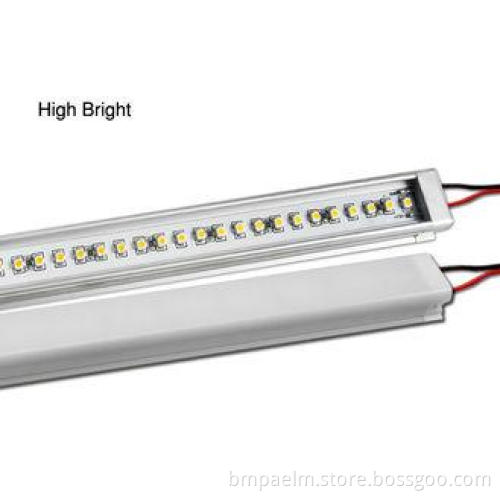

Aluminium SMD DC12V 90cm 7.2W 500lm -585lm Rigid LED Strip For Automobile Decorative
A．Product summarize
Product Name: LED aluminum bar light
Model: HB-S3A-090X
Specification: 90CM-90LED
Manufacturer: HIGH BRIGHT
Work Place: Bao’an, Shenzhen.
Last update : 2013.12.24
B．Specification & technical data:
| Model No. | HB-S3A-090X |
| Size | (L)90mm * (W)24mm * (H)10mm |
| LED Type | 3528 SMD LED |
| LED Q'ty | 90 pcs LED |
| Beam Angle | 120 degree |
| Voltalge | DC12V input |
| Current | 20 mA |
| Watts | 7.2W |
| Cover | Clear or frosted |
| Lumen | 500-580LM |
| Color | WW 2700-3500K / NW4000-4500K / CW6000-65000K |
| Red / Green /Blue / Yellow | |
| Life span | >40,000hrs |
| Certificates | CE. RoHS |
| IP Grade | IP44 / IP64 |
| Magnet | 4 pcs magnet at back of the aluminum shell |
| Fitting | 2 install clips included |
| Weight | 290g/pcs |
| Package | each with blister bag, 36pcs in a carton |
| Carton size | 96*19*20CM |
| Guarantee | 2 years |
C．Feature:
- Certification :EN55015,EN61547,EN61000,EPA8270,EN62471,EPA3050,EN1122,EPA3052.
- Green lighting: No flickering, ultra-low power.
- Circuit design: Constant Voltage Mode, No threat of high-voltage electrocution.
- Good heat releasing performance.
- Long lifespan: more than 40,000 hours+.
- Available in 12 or 24 voltage.
- Many specification for your different place choice, can be Super long strip
- Easily installation
D．Application range:
- Can be installed in refrigerator for lighting.
- Architectural lights for canopy, corridor, Window, archway.
- Backlight or edge lighting for signage.
- DIY lights for home use.
- Decorative lights for holiday, event, show, exhibition.
- Decorative lights for automobile.
- Ideal replacement of incandescent and fluorescent light.
- Under-cabinet lighting.
- Refrigerated display lighting.
- Bar and freezer cabinet lighting.
E. Why choose HIGH BRIGHT LED bar light?
- Special design: can add clear or frost cover, can add magnet at back
- Private aluminum shell
- have the patent
- with stable technical craft
- Large batch bars to export
- Factory have well production ability
- Delivery time normally in 7 days
- Guarantee for 2 years.
F. Picture shows of HIGH BRIGHT
How to make LED aluminum strip light:
Introduction of HIGH BRIGHT:
Machine of HIGH BRIGHT:
Team of HIGH BRIGHT attend to the Guangzhou and HK lighting fair:
Tag of LED aluminum strip:
90CM led strip light
3ft led aluminum bar light
smd3528 aluminum led rigid strip light
