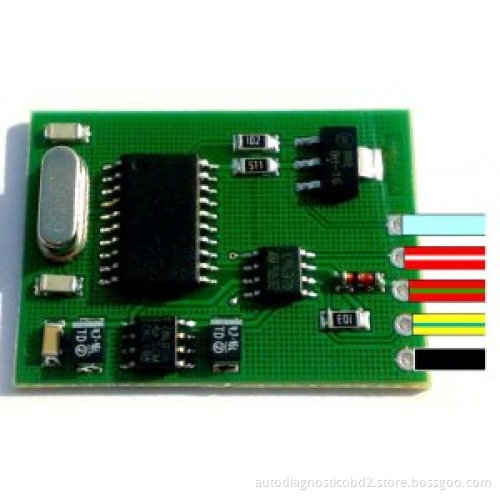

For Yamaha immo immobilizer Emulator for Yamaha Bikes Motors Scooters

Colouring of wires and their appointment:

Black (2 pcs.) GND
Red with a green strip BATT (+12v)
Red with a white strip IGN (+12v)
Blue LED (+5v)
Yellow with a blue strip K-line Immo-ECU

For Yamaha immobilizer emulator features

The emulator of an immobilizer for motorcycles and scooters for Yamaha.
Works with all motorcycles and scooters for Yamaha from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work on the instrument panel.

Immo Emulator Installation instruction:

1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
