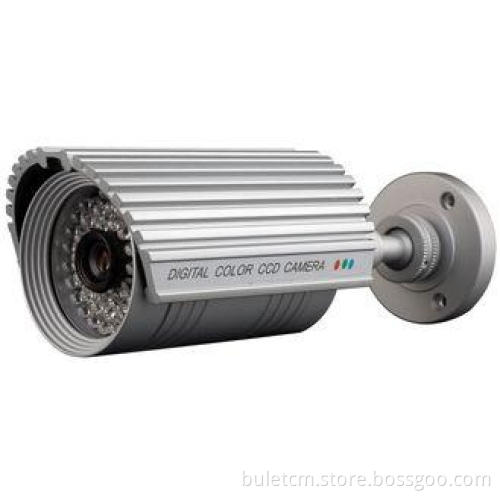

Built In OSD Motion Detection Privacy Masking Sony CCD SMART IR Bullet Cameras / Camera

Main feature:

SPECIFICATION
ITEM	HKR-30748HR1
Total Pixels	N: 811(H) x 508(V)	P: 795(H) x 596(V)
Effective Pixels	N: 768(H) x 494(V)	P: 752(H) x 582(V)
Sensor	1/3" Sony Super HAD II CCD
Scanning System	2:1 Interlace
Frequency	Horizontal :15.734KHz Vertical : 59.94Hz	Horizontal :15.625KHz Vertical : 50.00Hz
Resolution	More than 600TV Lines
Video Output	1.0Vp-p Composite Signal ( 75ohm )
AGC	OFF / LOW / MIDDLE / HIGH
S/N (Y signal)	52dB or more (AGC OFF)
Min.Illumination	0.01Lux(Sens-up Auto 0.00002Lux)
White Balance	AWC / MANUAL / PUSH
Electronic shutter speed	1/60s - 1/120, 000s	1/50s - 1/120, 000s
3D-DNR	OFF / ON Selectable(LOW / MIDDLE / HIGH)
Sens-Up	OFF / AUTO( x2 ~ x1024)
D&N Selection	AUTO / COLOR / BW / EXT
BLC	ON / OFF Selectable
D-WDR	ON / OFF Selectable
HLM	ON / OFF Selectable
Defect Pixel Compensation	Built In OSD
IR SMART	ON / OFF Selectable
Motion Detection	OFF / ON(AREA 1~4)
Privacy Masking	OFF / ON(MASK 1~8)
MIRROR	ON / OFF Selectable
SHARPNESS	ON / OFF (Level Adjustable 1~50)
LED	48pcs
Multi Language	Available
Lens	3.6 / 6 / 12 / 16 mm (Option)
O.S.D	Available
Operating temperature/Humidity	-10℃~+50℃/ 0~80% RH
Power Supply	DC12V 110mA
Dimensions	120mmX95mmX83mm
Weight	800g

Installation system
