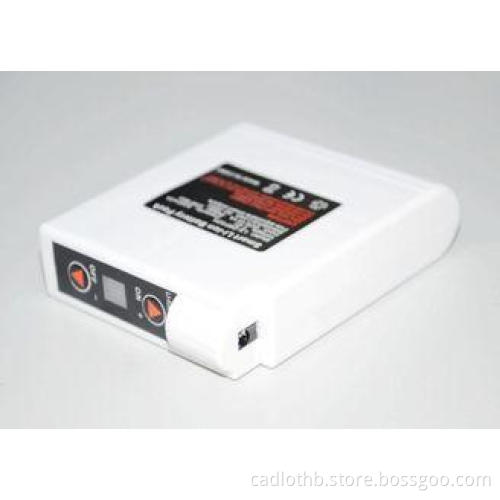

4400mAh 7.4v Heated Clothing Battery With Digital Tube Display
Description:
1. Item name: Li-ion Rechargeable Battery for Electric Heating Clothes
2. Model: LX-DRF02D
3. Voltage: 7.4v
4. Capacity: 4400mAh
5. Cell type: Brandnew Grade-A Li-ion
6. Digital tube display: 4-step temperature control, capacity indication
7. Charge/discharge port: DC3.5*1.35*7mm (can be custom-made)
8. Size: 92*72*23mm
9. Color: white (black/blue/pink/red/brown, etc. optional)
10. Usage: for heated vests, heated clothes, etc.
11. Warranty: 1 year
How to operate:
(1) Capacity indication
No Load, press ON/OFF button to indicate capacity level
|
Capacity indication |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Capacity level (%) |
0-10 |
10-20 |
20-30 |
30-40 |
40-50 |
50-60 |
60-70 |
70-80 |
80-90 |
90-100 |
(2) Output indication
Four smart outputs when connecting to the devices:
Press ON button for 2 seconds to switch power on, LED present“4.”, the output power=98%
Press OFF button, LED present“3.”, the output power=75%
Press OFF button, LED present“2.”, the output power=50%
Press OFF button, LED present“1.”, the output power=25%
Press OFF button for 2 seconds to switch power off, LED is off, the battery power off．
|
Output power indication |
1 |
2 |
3 |
4 |
|
Output power |
25% |
50% |
75% |
98% |
