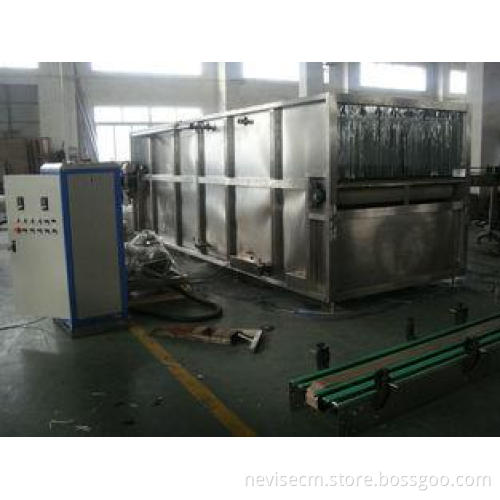

200cans/min Bottle Sterilization Machine For Bottled Water

200cans/min Bottle Sterilization Machine For Bottled Water Production Line

1. The main technical parameters:

1), the container parameters:

Capacity: 310ml three cans
Diameter: Ф66mm

2), the device dimensions: length × width × height = 9000 × 1800 × 1650 (mm)
(Out of the bottle with included in the machine, do not include external piping size)
3), the production capacity:
Rating: 200 cans / min
Main conveyor speed: 523 mm / min
4), the cold tank process parameters:
4.1 into the tank temperature: 95 ℃
4.2 Tank temperature: ≤ 40 ℃
4.3 Cold Tank Time: 13 minutes
4.4 cold tank temperature zones: three temperature zones
The first zone second temperature zone third zone
60 ~ 65 ℃ 40 ~ 45 ℃ ≤ 25 ℃ (water temperature)
4.5 Packing height: H ≤ 200mm
5), consumption of fixed: (The following data are the cold tank machine 200 cans / min production capacity extinction Consumption quota)
5.1 Electricity: (equipped with power) 15.55KW
Where: a main motor one set: 0.55KW
b 1 #, 2 #, 3 # temperature zones each one P = 4KW water pump motor: 4KW × 3 = 12KW
c into and out of two bottles of Motor: 2 × 1.5 = 3KW
Control Voltage: DC24 V
Operating voltage: 380 volts
5.2 ─ ─ cold water bottles media
Pressure: (water pressure) 2-4Kgf/cm2
Dosage: 3.5m3 water recycling box
Runtime water consumption :8-10T / h
5.3 steam
Steam pressure :4-6Kgf / cm2
Dosage: device is working properly before starting consumption: 500Kg
Device is working properly when consumed: 100Kg / H
5.4 Compressed air pressure :2-4Kgf / cm2
Dosage: 5.8m3 / h (standard state)
6), Weight: Net weight: about 3 tons
Operating weight: about 10 tons

2．Main technical characteristics:

YLP1590 hot filling machine is cold cans digestion plant in the introduction of foreign advanced technology, based on the development of a new model conditions eclectic, this device has the following characteristics:

1), and high reliability conveying device
Using the pitch conveyor bottle containing 2 1/4 inch high-strength plastic chain network, the strength, high temperature, good water permeability, and a certain resistance to abrasion, the surface of the conveyor belt made ​​of round edges, expanding the surface area, the product smooth transportation, the main variable frequency drive, can easily change the conveying speed, so that the production capacity can be suitably adjusted within a certain range.
2), the main structure of the full open
The main body wall using the full open structure of the top and sides of the body can be very easily opened cleaning, maintenance and production of the observation time is very convenient.
3), spray device easy maintenance
Using a circular stainless steel spray nozzles installed on the pipe structure, nozzle area, water flow through the nozzle and formed conical jet of water ejected radially downward, this structure is not only simple and easy to clean, nozzle clogging.
4), the main purpose and scope:
This equipment is functional beverage cooling drink after hot filling specially designed bottle into the bottle by a cooling device with automatic feeding bottle with automatic after the output of the device is functional beverage filling automatic production line main equipment world.
