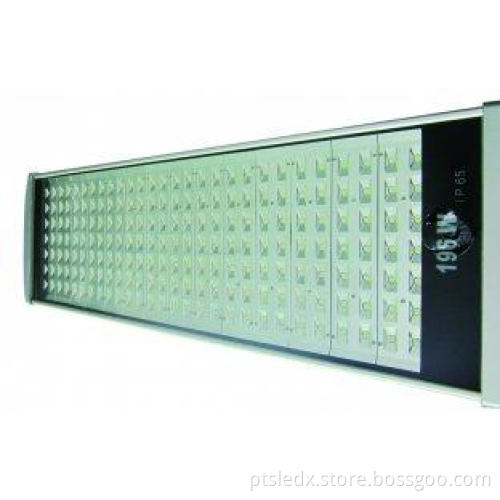

Light Power Bridgelux Outdoor 6500K 50 - 60 HZ Led Road Lamp 196W with Die - Cast Aluminum
Specifications:
|
Parameters
|
LED Type |
Bridgelux
|
THD |
<20% |
||||||
|
LED Initial Flux (6500K) |
100lm-110 lm/per watt |
|||||||||
|
CRI |
Warm White Ra > 68 |
Cold White (6500K) Ra > 75 |
||||||||
|
Light Distribution Curve |
(Bat Wing) |
LED Initial Flux (6500K) |
100lm-110lm/perwatt |
|||||||
|
Color Temperature |
CW 7000K+ PW 6000K-6500K DW 4000K-5000K WW 2800K-3500K |
Beam Angle |
120°: The Horizontal Axis: 110° The Vertical Axis: 45° 140°: The Horizontal Axis:130° The Vertical Axis: 45° |
|||||||
|
Electrical Parameters
|
Input Voltage |
AC85-AC265V AC277V+ |
Working Voltage |
DC36V |
||||||
|
FrequencyRange |
50-60 HZ |
Power Factor |
> 0.93 |
|||||||
|
PowerEfficiency |
>84% |
Lamp Efficiency |
>86% |
|||||||
|
TJ |
60 ℃±10 % |
Photocell On/Off |
Optional |
|||||||
|
Dimming Control |
Optional |
|||||||||
|
Mechanical Parameters
|
Material |
Die-Cast Aluminum |
Working Environment |
-40℃~ 55℃ Humid:10%-90% |
||||||
|
Working Life |
50000 hours |
Storage Environment |
-20℃~75℃ (25℃best) |
|||||||
|
Dimension of pipe for installation |
Φ62mm |
IP Grade |
IP67 |
|||||||
|
Model
|
LED Power |
Light Power |
Illumination (LM) |
Lamp Size
|
NetWeight |
|||||
|
6M |
8M |
10M |
12M |
|||||||
|
COL408-196W |
196*1W |
220W |
128 lux |
73 lux |
45lux |
32lux |
L105*W30*H12cm |
18.0±5%kg |
||
Description:
1．Pioneering single-plate type lamp shell (exceptforCO-L408)
The creative and scientific design of the combination of radiator and lamps hell makes the heat transfers and releases fast, minimizing the LED brightness decline
2．Punching multi-surface three-dimension radiator
3. High conduction, light weight and high heat dissipation efficiency Cu-Mg-Al alloy structure is used.
4. Dust proof and sand proof
6. High-power integrated encapsulation US Bridgelux LED chips
7. Stable rectifier, long life span , constant-current drive.
8 Unique design of optical light lens
9. Eccentric elliptical light spot with high burnishing efficiency
Applications:
These street lights are designed for main road, highway, tunnel, bridge, avenues, highways, crossing, rural road, industrial estate, national road, parks, campus, boat dock, remote area, military base, farm, airport , etc
