26", 32", 42", 55", 65"Touch Screen Monitor for Casino Adve
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

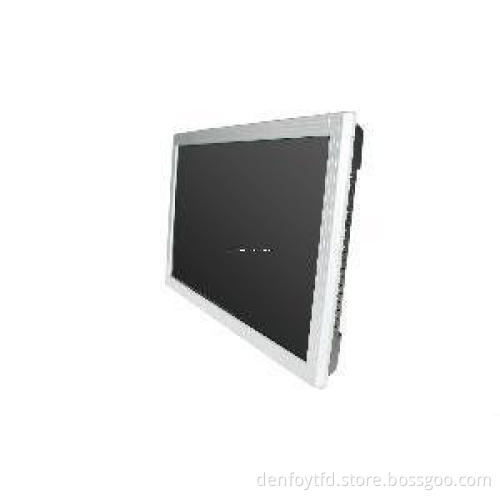

Touch Monitor
Specification
Model No YL3200
Display area TFT LCD 32"
Dimension for customizing From 26" to 150" available
Resolution 1366 * 768
Contrast Radio 1000: 1
Color Resolution 16.7M
Brightness 450CD/m2 Port Type VGA+DVI+HDMI
Inner Speaker 2 units
About the Touch Screen
Light Transmittance More than 92%, highest to 100%
Scanning Speed 50scans/s
Min Touching Objects More than 5mm
Responding Time Less than 16ms
Hitting life expectancy Each point can be touched more than 60 millions times.
Durability and Resistance When a steel ball of 1040g (whose diameter is 65.5mm) falls down onto the touch screen from the height of 1 meter, the screen still keeps safe and sound.
Electric Apparatus
Power Supply DC5V (+/-5%)
Ways of Power Supply External Source
Rate of Work Less than 2 W
Applying Operation System Windows 2000XP2003CELinux
Controller USB or RS232
Circumstance
Working Temperature From -10 to 35degree
Storage Temperature From -20 to 60degree
Working Humidity From 0 to 80%
Storage Humidity From 0 to 90%
Highlight Resistance Can resist the highlight from all angles
Drift No drift, and stable, no change following the change of the circumstance.
Installing Ways Wall Mounting, or as per the customers' specific requirement
Applying Field
Widely applied to the interactive information terminals indoors/outdoor, medical apparatus, industrial control, medical diagnosis, service system, interactive teaching system and any other public service centers.
Specification
Model No YL3200
Display area TFT LCD 32"
Dimension for customizing From 26" to 150" available
Resolution 1366 * 768
Contrast Radio 1000: 1
Color Resolution 16.7M
Brightness 450CD/m2 Port Type VGA+DVI+HDMI
Inner Speaker 2 units
About the Touch Screen
Light Transmittance More than 92%, highest to 100%
Scanning Speed 50scans/s
Min Touching Objects More than 5mm
Responding Time Less than 16ms
Hitting life expectancy Each point can be touched more than 60 millions times.
Durability and Resistance When a steel ball of 1040g (whose diameter is 65.5mm) falls down onto the touch screen from the height of 1 meter, the screen still keeps safe and sound.
Electric Apparatus
Power Supply DC5V (+/-5%)
Ways of Power Supply External Source
Rate of Work Less than 2 W
Applying Operation System Windows 2000XP2003CELinux
Controller USB or RS232
Circumstance
Working Temperature From -10 to 35degree
Storage Temperature From -20 to 60degree
Working Humidity From 0 to 80%
Storage Humidity From 0 to 90%
Highlight Resistance Can resist the highlight from all angles
Drift No drift, and stable, no change following the change of the circumstance.
Installing Ways Wall Mounting, or as per the customers' specific requirement
Applying Field
Widely applied to the interactive information terminals indoors/outdoor, medical apparatus, industrial control, medical diagnosis, service system, interactive teaching system and any other public service centers.
