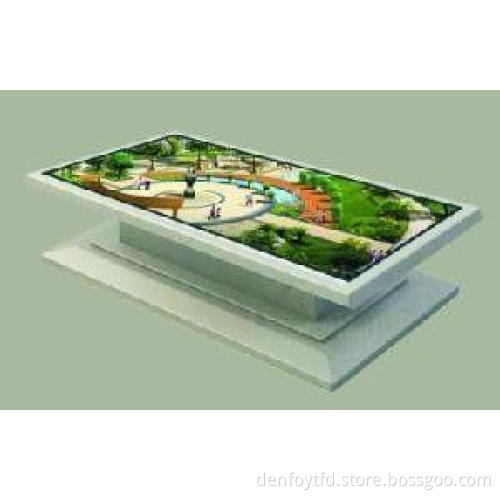

42" Big Size Desktop Self-Service-Touch Screen Kiosk
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description
Model No PC65H(ATOM 1.6)
Display area TFT LCD 65"
Dimension for customizing From 26" to 150" available
Resolution 1920*1080
Contrast Radio 5000: 1
Color Resolution 1073.7M
Brightness 700CD/m2
Port Type VGA+DVI+HDMI
Inner Speaker 2 units
Standard Collocations:
Mainboard Intel 945GSE
CPU ATOM 1.6GHz
Memory DDRII 1G
HDD 250G
USB port 4 units
RS232 port 4 units
Audio Interface AC97 Audio
Network Interface 100M/1000Mbps high speed ethernet network
(wireless network card optional)
About the Touch Screen
Light Transmittance More than 92%, highest to 100%
Scanning Speed 50scans/s
Min Touching Objects
Responding Time More than 5mm
Less than 16ms
Hitting life expectancy Each point can be touched more than 60 millions times.
Durability and Resistance When a steel ball of 1040g (whose diameter is 65.5mm) falls down onto the touch screen from the height of 1 meter, the screen still keeps safe and sound.
Electric Apparatus
Ways of Power Supply 110V-240V
Rate of Work Less than 2 W
Applying Operation System Windows Linux DOS, etc
Interface of the controller USB or RS232
Circumstance
Working Temperature From -10 to 35
Storage Temperature From -20 to 60
Working Humidity From 0 to 80%
Storage Humidity From 0 to 90%
Highlight Resistance Can resist the highlight from all angles
Drift No drift, and stable, no change following the change of the circumstance.
Installing Ways Desktop, Wall Mounting, or as per the customers' specific requirement
Applying Field
Widely applied to the interactive information terminals indoors/outdoor, medical apparatus, industrial control, medical diagnosis, service system, interactive teaching system and any other public service centers.
Display area TFT LCD 65"
Dimension for customizing From 26" to 150" available
Resolution 1920*1080
Contrast Radio 5000: 1
Color Resolution 1073.7M
Brightness 700CD/m2
Port Type VGA+DVI+HDMI
Inner Speaker 2 units
Standard Collocations:
Mainboard Intel 945GSE
CPU ATOM 1.6GHz
Memory DDRII 1G
HDD 250G
USB port 4 units
RS232 port 4 units
Audio Interface AC97 Audio
Network Interface 100M/1000Mbps high speed ethernet network
(wireless network card optional)
About the Touch Screen
Light Transmittance More than 92%, highest to 100%
Scanning Speed 50scans/s
Min Touching Objects
Responding Time More than 5mm
Less than 16ms
Hitting life expectancy Each point can be touched more than 60 millions times.
Durability and Resistance When a steel ball of 1040g (whose diameter is 65.5mm) falls down onto the touch screen from the height of 1 meter, the screen still keeps safe and sound.
Electric Apparatus
Ways of Power Supply 110V-240V
Rate of Work Less than 2 W
Applying Operation System Windows Linux DOS, etc
Interface of the controller USB or RS232
Circumstance
Working Temperature From -10 to 35
Storage Temperature From -20 to 60
Working Humidity From 0 to 80%
Storage Humidity From 0 to 90%
Highlight Resistance Can resist the highlight from all angles
Drift No drift, and stable, no change following the change of the circumstance.
Installing Ways Desktop, Wall Mounting, or as per the customers' specific requirement
Applying Field
Widely applied to the interactive information terminals indoors/outdoor, medical apparatus, industrial control, medical diagnosis, service system, interactive teaching system and any other public service centers.
