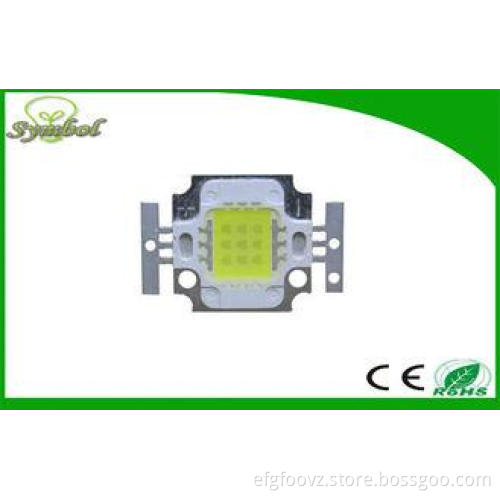

6000K 10W Epistar High powered LEDs 100 - 140LM/W 9-50V RA80
Quick Detail:
- Model : 10W Epistar High-power integrated LED
- Luminous Intensity: 100-140lm/w
- Luminous Flux(lm): 1000-1400lm
- Power: 10w
- Power Dissipation: 10
- Viewing Angle(°): 140
- Color Rendering Index(Ra): 80
- Color Temperature: 2700k - 7500k
- working current: 300MA 600MA 900MA
- working Voltage: 9-50V
- Viewing angle: 140 degrees
Description:
1. 10W Epistar High-power integrated LED
2. Chip Material: InGaN
3. Emitting Color: 2700k - 7500k
4. More than 50000 hours lifespan with 3 years warranty
5. Luminous flux 1000-1400lm
6. Optical Attenuation(%): 1
7. Operating Temperature(℃): -30 - 60
8. Storage Temperature(℃): -10 - 40
9. It is widely used in led floodlight led high bay light led streetlight and so on
Applications:
Epistar High power LED is widely used on outdoor led lamps,like,led floodlight ,led High bay light ,led track light,led street light and so on.
Specifications :
|
Item |
10W Epistar High-power integrated LED specification |
|
Commedity |
China supplier 10W Epistar High-power integrated LED factory direct sale |
|
Part No. |
XR-P10W202010W |
|
Color |
warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want |
|
Chip brand |
Epistar ,taiwan |
|
Lumens |
1000-1400lm |
|
Power |
10watt |
|
Current |
300MA 600MA 900MA |
|
Voltage |
9-50V |
|
CRI |
>75 >80 >85 |
|
CCT range |
2800-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white) |
|
Working temperature |
-20 °C-+40 °C |
|
Super long lifetime |
50,000 H long lifetime |
|
Max Junction Temperature |
150°C |
|
Certification |
CE, Rohs |
|
Lowest thermal resistance |
8°C/W |
|
Warranty |
3 years |
|
Place of Orign |
Shenzhen Guangdong China |
|
Feature |
Anti UV |
|
Technical |
Silicone PC molding |
Competitive advantages:
1. LED with high brightness and high CRI, reach to 50,000 hours life span.
2. High energy saving, 90% energy than the incandescent lamp.
3. Green environmental protection, No UV or IR interference, no carbon dioxide emission.
4. We produce lamp beads, could provide high cost performance products
