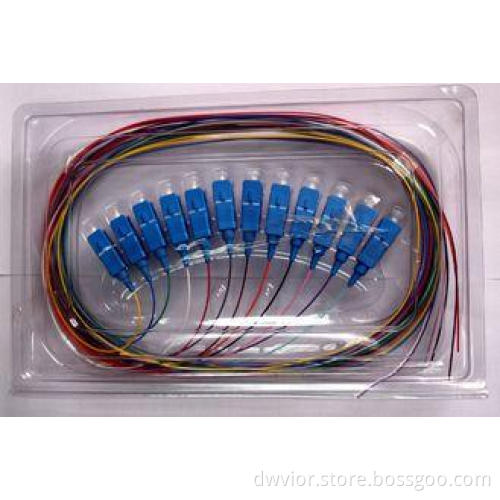

12 Core SC / UPC Fiber Optic Pigtails Patch cord , OFNR / OFNR / PVC Type
Quick Detail:
- SC SM SX 0.9mm 12 color pigtail
- Material: standard exact plastic
- Small, light, high dense connection
- Push-pull RJ-45 lockable structure
- Good in repeatability
- Good in exchange
Specifications:
|
Item |
Vaule |
|
Ferrule end-face |
PC,UPC,APC |
|
Cable type |
SX,PVC,LSZH,OM3,OM4,OFNR,OFNP |
|
Mode |
SM:9/125,MM:50/125,62.5/125 |
|
Cable diameter |
0.9mm,2.0mm,3.0mm |
|
Insertion loss |
≤0.2 and ≤0.3dB |
|
Return loss |
≥50 and ≥65dB |
|
Exchangeability |
≤0.2dB |
|
Vibration |
≤0.2dB |
|
Operating temperature |
-40 to 75°C |
|
Storage temperature |
-45 to 85°C |
|
Cable length |
1,2,3m and 5m or customized |
|
Operating wavelength |
1,310 and 1,510nm |
Applications:
Videos
Active device termination
Premise installations
Telecommunication networks
Local area networks (LANs)
Data processing networks
Wide area networks (WANs)
Industrial, medical and military
-
