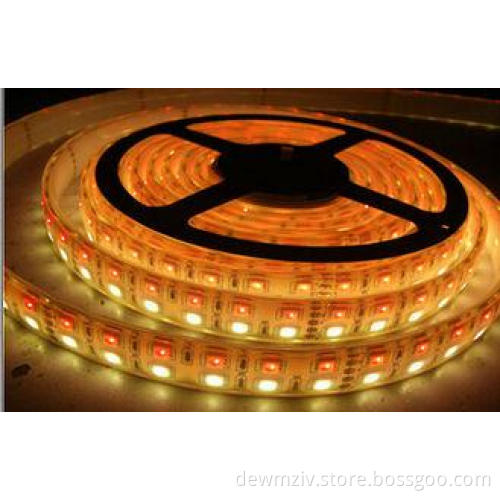

Orange IP65 IP67 IP68 Waterproof SMD 3528 LED Strip 19.2W/M
  • Orange IP65 IP67 IP68 Waterproof SMD 3528 LED Strip 19.2W/M
Orange IP65 IP67 IP68 Waterproof SMD 3528 LED Strip 19.2W/M

Orange IP65 IP67 IP68 Waterproof SMD 3528 LED Strip 19.2W/M

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

Orange IP65 IP67 IP68 Waterproof SMD 3528 LED Strip 19.2W/M led flexible strip

Quick Detail:

1. SMD3528 240leds
2. 19.2w/m
3. 5~6LM/LED
4. color:W/WW/R/G/B/Y/RGB
5. IP20,IP65,IP67,IP68 available
6. 5M per roll
7. Lifetime:50000H

Description:

SMD 3528 LED strip,White pcb or yellow pcb, 19.2W per meter, 3leds or 6leds cutable, 5 meter per roll,IP20,IP65,IP67,IP68 is availavle for choose,Energy Saving,Environmental Protective,CE,ROHS,FCC certificate

Applications:

1. Decorative lighting for exhibition shelves, advertising light box and hotel etc;
2. Backlight for edge lighting/signage;
3. Holiday decorative lights, residential and outdoor lighting;
4. Bridge, garden, road and car lighting etc;
5. Long-distance project but with inconvenient wiring;

Specifications :

Technical Data

Model

RM-F3528IP65-240P-WW

LED Qty

240leds/m

LED Type

Epistar

LED Color

R/G/B/Y/W/WW/RGB

Input Voltage

12v dc (24V dc optional)

Watt

19.2W/meter

Luminous Efficiency

6lm-7lm per LED

Color Temperature

Warm white

2800-3200K

Natural white

4000-4500K

Cool white

6000-6500K

Light Efficiency

>85%

Beam Angle

>120°

Working Temperature

-40℃ ~ +55℃

Storage Temperature

-25℃ ~ +65℃(25℃best)

Life span

50000hrs

Certificate

CE, RoHS, FCC

IP Grade

IP20 (IP65, IP67, IP68 available)

PCB Color

Copper / White / Black

Net Weight

0.3kgs

Dimension

1000*10*2.2mm (3M adhesive on back)

package

5m/roll in each Anti-static bag

Installation way

3M adhesive on back

Competitive advantages of Flexible LED strip:

1. Adaptability : LED light strips can be adapted for almost any task, big or small.

2. Easy installtion: Installing individual lights one by one can be a difficult task, especially when a vast number of lights are required. Installing strip lights is extremely easy and requires very little expertise.

3. Long Lasting : LED lights last longer than most other bulbs. If a fluorescent light lasts for 10,000 hours, and an incandescent for 1500, LED light strips dwarf this number by lasting for a potentially staggering 60,000 hours.

4. Hard to Damage :the LEDs are mounted to a flexible "ribbon" of circuit board, which is durable enough to be bent around 90 degree corners and attach to gradient surfaces.

5. Color Options : LEDs provide a wide range of different colors from cold whites to warm yellows, oranges, and reds.

6. Cutting:LED Strip Lights are one of the few types of lighting in existence that can be cut.

7. Low Voltage: LED Strips is a type of low voltage LED product, making them safer to use and less of a risk.

8. Mobility : LED light strips can be powered by a small battery, allowing them to placed almost anywhere.

9. No Glass : Many LEDs are covered in a plastic shell. This is much safer than other bulbs, as there is no glass to smash.

10. Savings : Due to the low amount of energy they consume, and their longevity, LEDs tend to reduce overall lighting costs substantially.

Dimension:

Available PCB Color and IP class

Installation Instruction

Package
