Basic Info

Place of Origin:	China

Product Description

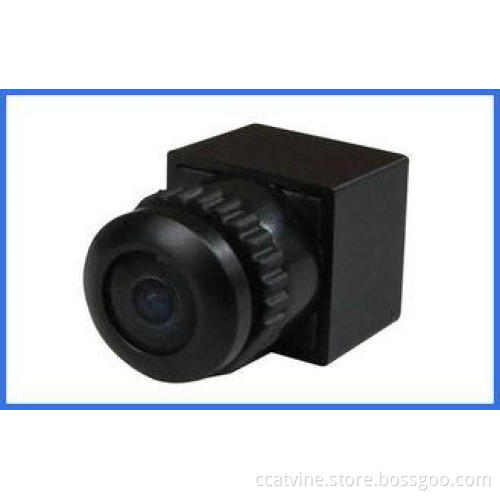

High resolution Surveillance Mini Hidden CCTV Camera , 170 Degree View angle

Quick Detail:

1. Model Number: ZBS91AB18
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4. Imaging device: 1/4 CMOS
5. System format: PAL or NTSC
6. View angle: 170 degrees
6. Pixel: 480TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.5kg
9. Package Size: 13x8x7cm

Description:

1. 170degree wide view angle,3.6-24v wide voltage

2. Small Size: easy to install into narrow room and slim tube, etc;

3. High resolution, high sensitivity, high SNR;

4. Day & night dual mode auto switch;

5. Low Illumination, Low Current and power consumption;

6. CMOS sensor generation IV+DSP chip offer true color & HD video.

Applications:

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Specifications :

PICK UP ELEMENT	Single chip 1/4CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:720(H)×480(V)	PAL:720(H)×576(V)
SENSOR DIMENSION	3.584mm(H)×2.688mm(V)
HORIZONTAL RESOLUTION	Approximately 480TV Lines
SENSITIVITY	0.1Lux/F2.8
LENS & VIEW ANGLE	F2.8/ 170°
S/N RATIO	48dB
AUTO GAIN CONTROL	OUT
WHITE BALANCE CONTROL	OUT
BACK LIGHT COMPENSATION	OUT
VIDEO OUT	1.0V p-p/75ohm
WEIGHT	8g
SIZE(LXWXH)	15.5X15.5X23mm
WORK CURRENT	DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT	DC:3.6V-24V
OPERATING TEMPERATURE	- 10° C ~ +50°C ,less than 90% RH
Connection	PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT White=audio

Competitive advantages:

good price, reliable quality, guarantee of delivery,good services
