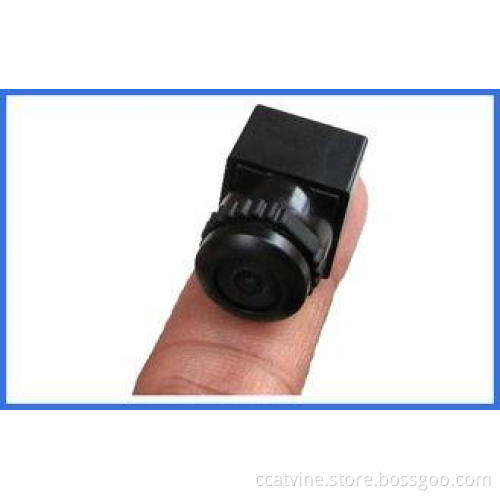

High SNR 1 / 4CMOS CCTV Mini Camera 480TVL 3.6 - 24v , night vision camera security
Quick Detail:
1. Model Number: ZBS91B18
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4. Imaging device: 1/4 CMOS
5. System format: PAL or NTSC
6. View angle: 170 degrees
6. Pixel: 480TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.5kg
9. Package Size: 13x8x7cm
Description:
Applications:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specifications :
| PICK UP ELEMENT | Single chip 1/4CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:720(H)×480(V) | PAL:720(H)×576(V) |
| SENSOR DIMENSION | 3.584mm(H)×2.688mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 480TV Lines | |
| SENSITIVITY | 0.1Lux/F2.8 | |
| LENS & VIEW ANGLE | F2.8/ 170° | |
| S/N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| WEIGHT | 8g | |
| SIZE(LXWXH) | 15.5X15.5X23mm | |
| WORK CURRENT | DC12V: 45mA DC5V: 95mA | |
| POWER REQUIREMENT | DC:3.6V-24V | |
| OPERATING TEMPERATURE | - 10° C ~ +50°C ,less than 90% RH | |
| Connection | PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT | |
Competitive advantages:
good price, reliable quality, guarantee of delivery,good services
