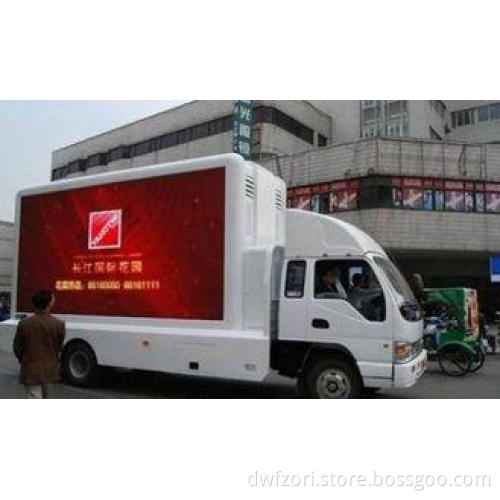

Advertising P10 Vehicle Truck Mounted LED Screens Full Colo
  • Advertising P10 Vehicle Truck Mounted LED Screens Full Colo
Advertising P10 Vehicle Truck Mounted LED Screens Full Colo

Advertising P10 Vehicle Truck Mounted LED Screens Full Colo

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Product Description
Product Description


Quick Detail:
1. High resolution and high frequency dynamic image;
2. Long life span and stable work, waterproof;
3. Easy repair &maintenance;
4. Can be used in advertisement, stage, stadium, exhibition.

Advertising P10 Vehicle Truck Mounted LED Screens Full Color , 6500cd/ ㎡


Description:
1. Viewing distance of P10 LED display is 10m~150m and has super brightness make it a fantastically vivid demonstration of video, animations and other electronic contents;


2. Show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously;
3. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG, HD-SDI, etc;
4. Self-adjustment function automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition;
5. Protection level IP65, water-proof, dust-proof, mositure-proof and anti-static electric.

Applications:
Shopping Malls
Outdoor advertising
Street
Market
Schools
Bus station
Specifications:

Part Number

TeehoLED-P10-8S

Resolution

16(H)×16(V)

Pixel Pitch

10mm

LED Configuration

1R1G1B 1-BY-1 DIP

Pixel Density

10,000pixels/ ㎡

Module Size

160*160mm

Driving IC

MBI5026

Driving Method

1/4 Scan, Constant Current

Cabinet Weight

58kg/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>6,500cd/ ㎡

View Angle

120°/60°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100% 10 level

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

800W/ ㎡

Average Power Consumption

200W/ ㎡

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

IP65

Out of Control Rate

<0.02%




Competitive Advantage:
1. High gray scale level, from 8192 (13 bits) to 16384 (14 bits). much more colorful and gorgeous;
2. High refresh rate, 400-2000 HZ. Higher refresh rate, changing images continuity is much better;
3. Good planeness. The gap between modules is ±0.5mm, look pretty smooth;
4. Reliable quality, really high cost-effective.

Tag : Outdoor advertising Led Screen, Outdoor P10 vehicle Led Displays, Outdoor full color vehicle led display
