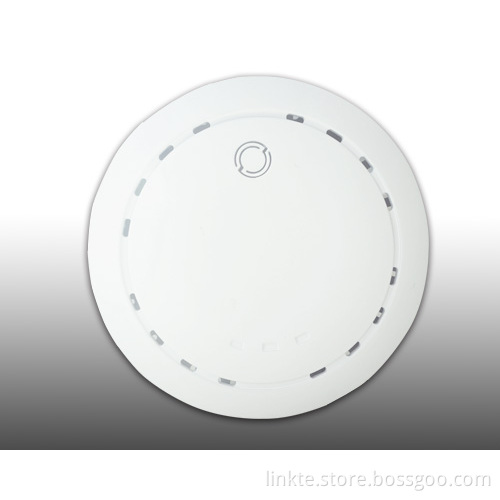

WA301 300Mbps High Power Wireless Ceiling AP
- Payment Type:
- T/T, Paypal
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10,000 |
| Supply Ability: | 10,000pcs/Month |
| Payment Type: | T/T,Paypal |
| Certificate: | CE/FCC |
| Transportation: | Ocean |
Description:
Multi-function and powerful
The Ceiling PoE wireless AP for office and hotel network provides fast wireless transfer rate. Compliance with the 802.11n standard, The wifi speed up to 300Mbps, and to meet the demand for all data, voice and video streams.
Big Coverage and Easy Installation
Ceiling case design aesthetics and user-friendly installation, it is like a smoke detector, unique ceiling design through simple installation can be firmly adsorbed on the ceiling, the unique structure of the surrounding environment is more decorative role. Support PoE power supply , let the AP to get rid of the restrictions of the power of the access point to be powered via the network cable to simplify installation, the AP layout position more freely.
Advanced Function
Ceiling AP provides advanced wireless security options: WEP, WPA, WPA2 encryption. It also supports AP, AP Client, WDS and Universal Repeater four operating modes, user-friendly flexibility in the use of the formation of the network. In addition, the ceiling AP supports multiple SSID (up to 6 SSID) management through a single access point to assign different policies for each SSID
Feature:
1, Comply with IEEE 802.3af Powered Device (PD) standard
2, Comply with IEEE 802.11b/g/n standards, wifi speed up to 300Mbps
3, 300mW High transmit power with good receive sensitivity
4, Provides MAC access control, Provides hidden SSID function
5, Supports Web-based configuration, Firmware upgradeable via Web browser
6, Provides one 10/100M Ethernet interface, and support Auto MDI / MDIX
7, Support automatically adjust the wireless transfer rate
8, Supporting SSID broadcast control, effectively prevent the SSID broadcast leak
9, Support WMM,let your voice and video more smooth
10, Support software to control the the AP working status LED is turned on and off, more humane
11, Support Openwrt system
Specifications:
|
Hardware |
|||
|
MCU Chipset |
RT3052 / 360MHz |
||
|
RF |
2T2R |
||
|
Memory |
32MB RAM (Max.32MB) |
||
|
Flash |
8MB(Max.16MB) |
||
|
Interface |
1* RJ-45 10/100Mbps 1* Reset button 1*PowerDCJack |
||
|
Power |
DC 9V / 1A |
||
|
Antenna |
Internal 3dBi Omni gain antenna |
||
|
Power Consumption |
7Watts (Max.) |
||
|
Dimension |
120 x 45mm |
||
|
Wireless |
|||
|
Standard |
IEEE 802.11g, IEEE 802.11b, IEEE 802.11n |
||
|
Speed |
11b:1/2/5.5/11Mbps 11g:6/9/12/18/24/36/48/54Mbps 11n: Up to 300Mbps |
||
|
Frequency |
2.4~2.4835GHz |
||
|
Security |
WPA-PSK/WPA2-PSK,WPA/WPA2,64/128/152 WEP |
||
|
Channel |
1 ~ 13 |
||
|
Transmit Rate |
11n 2.4GHz 23dBm (± 1.5dBm) 11g 23dBm (± 1.5dBm) 11b 25dBm (± 1.5dBm) |
||
|
Modulation |
OFDM : BPSK 6/9Mbps, QPSK 12/18Mbps, 16-QAM 24Mbps, 64-QAM 48/54Mbps |
||
|
Sensitivity |
802.11n -86dBm @ MCS0 -68dBm @ MCS7 -83dBm @ MCS8 -64dBm @ MCS15 |
802.11g -90dBm @ 6Mbps - 2dBm @ 54Mbps |
802.11b -91dBm @ 1Mbps -85dBm @ 11Mbps |
|
Software |
|||
|
Woke Mode |
Access Point/AP Client/Gateway |
||
|
Wireless Function |
Auto-Channel selection Distance Control (802.1x Ack timeout) Multiple SSID (4 SSID) WDS AP /WDSBridge BSSID |
||
|
Security |
WEP Encryption-64/128/152 bit WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP) Hide SSID MAC/IP Address &URL filtering Wireless STA (Client) connected list |
||
|
DHCP |
DHCP Server, DHCP Client |
||
|
Network |
Port Mapping, DMZ Host, Statics Routing, DDNS,UPNP |
||
|
Firewall |
IP Address/Port/MAC/URL Filter, ANI-DoS, |
||
|
Management |
Firmware Upgrade and backup, factory Reset, Restart, WEB management, log management, thePINGtool |
||
|
Operating System |
Windows XP/XP64/Vista/Vista64, Windows 7/Windows7 x64,Linux |
||
|
Environment |
Operating temperature 0oC~40oC Storage temperature -40oC~70oC Relative humidity 10% ~ 90%, Non-Condensing Storage Humidity 5%~95% Non-Condensing |
||
