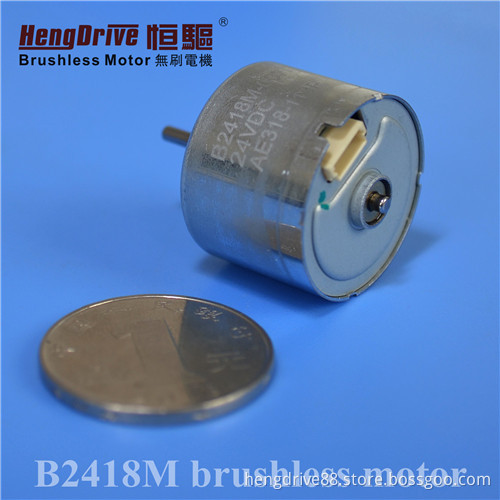

Hengdrive 24mm brushless motor for hair curler

Output Power: 1W~6W

Weight: 30g (Approx.)

Brushless DC Motor-Typical Application

Home Application: White Goods, Small Appliance, Small Fanner, Electric Cooker

Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine

Industry Apparatus: Electric Valve, Portable Screwdriver, Air Pump, Water Pump, Vacuum Pump

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register, Card Sender

Personal Care: Hair Curler, , Hair Straighter, Hair Dryer, Electric Shaver, Massager, Vibrator

Model

Voltage(V)

No Load

Rated Load

Starting

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2418M-S01

5-12

6

9260

0.21

2.45

7490

0.61

1.93

6.2

1.20

B2418M-S02

8-26

12

6520

0.08

2.45

4660

0.24

1.2

8.4

0.65

B2418M-S03

8-26

12

12420

0.127

2.94

9580

0.43

2.96

12.8

1.47

B2418M-S04

8-26

24

12770

0.065

5.89

9280

0.41

5.72

21.5

1.32

B2418M-S05

8-26

24

8660

0.055

2.94

6690

0.169

2.06

12.8

0.55

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
