RJ45 Cat6 Keystone Jack UTP
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Housing Material | PC UL 94V-0 |
|---|---|
| Color | White etc. |
| Style | Slim body Style |
| Design | Tool-free Design |
| Type | RJ45 |
| Use | Other |
| Length | Other |
Detail Description

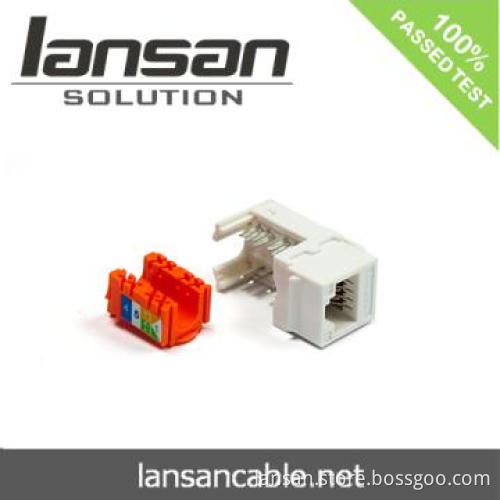

Description of UTP RJ45 Cat6 Modules
Specifications
l UTP RJ45 Cat6 Modules
l Certification hasISO9001/CE/CQC
l .business for 20 years
l Offer different specifications
Industry standard:
l Meet TIA-568-A and TIA/A-568-B
l Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
l High reliability and superior performance
Electrical:
l Voltage rating: 125 vac RMS
l Current rating: 1.5 amp
l Contact resistance: 100 milliohms max
l Insulation resistance: 1000 megohms min @ 500 vdc
l Dielectric strength: 750 vac RMS 60Hz, 1min
Environmental:
l Storage: -40° To +85°
l Operation: 0° To 70°
l Conform to tia/eia 568b category 6
l Mates with modular plug conforming to FCC part 68, subpart f.
Mechanical:
l Housing material: PC UL94v-0
l Insert material: Flame retardancy ABS UL94v-0
l PCB material: Fr-4 thickness: 1.6mm
l Contact material: Phosphor bronze stamp pin t=0.35mm
l Idc contact material: Phosphor bronze t=0.50mm with nickel plating
l Wire: Awg 24-26
Packaging & Delivery
| Packaging Detail: | bags ,cartons |
| Delivery Detail: | 10-20days after receving 30% deposit |
Our company provide all kinds of grades of this product, you can chose it as you require. Welcome to chat with us on line to get more details of this products
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1000 Piece/Pieces |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 10-20working days after received 30%deposit |
| FOB Port | Shenzhen |
| Loading Info | FOB Shenzhen Shekou |
| Packing Info | 1pc/PE bag, several bag/box. normally packing |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
