Lan network cable cat 5 wire
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Outer cable diameter | 6.80± 0.2 mm |
|---|---|
| Insulation | Polythene (PE) |
| Jacket | PVC |
| Type | CAT 5E |
| Shield | PET/AI FOIL |
| Insulation Material | Others |
| Type | other |
| Sheath | PVC |
| Conductor Material | Copper |
| Pressure | Other |
| Voltage | Other |
| Application | Car, Computer, Construction, Industrial, Marine, Military, Mining, Other, Overhead, Power Station, Railway, Telecommunication, Underground |
Detail Description
Specifications
CAT 5e FTP cable
1)0.50mm BC or CCA, Al foiled,steel messenger, solid or stranded
2)Standard: UL444, TIA/EIA568B, YD/T1019-200
CAT 5 FTP cable
1.Conductors: 24AWG, Solid bare copper or CCA or CCS
2.Insulation:Polythene (PE).
3.shield:Al-foil
Pair 1 : Blue,White / Blue
Pair 2 : Orange,White / Orange
Pair 3 : Green,White / Green
Pair 4 : Brown,White / Brown
4.Ripcord: Under Jacket.
5.Jacket : PVC or Halogen-Free(LSOH)
6.Standards UL444 /CSA-C22.2 No.214, Type CM. EIA / TIA-568A and EIA/TIA 568B.2, Horizontal
Cable.
7.Applications 10 Base T(IEEE 802.3) Fast Ethernet(IEEE 802.3u) 100vg-AnyLAN(IEEE 802.12) , Token Ring (IEEE 802.5) TP-PMD (ANSI X3T9.5) 100 Mbps CDDI ATM 155
8.Optional versions: Also available in 24AWG or 26AWG
9.UTP Unscreen Cable.
10.FTP Single Shielding Cable,Mylar tape. Aluminum-mylar tape ang Drain wire
11. SFTP Double Shielding Cable.Mylar tape. Aluminum-mylar tape and drain wire and bare or tinned Copper braid.

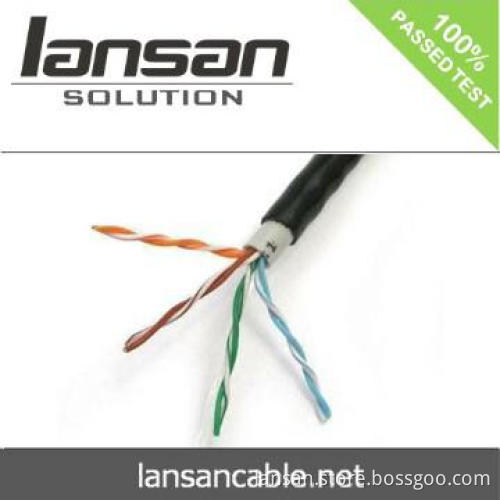

FTP CAT5 with messenger
Description: 4pairs shield FTP CAT5 with messenger
Outdoor and aerial or self-supporting use.
Conductor: annealed bare copper
Insulation: HDPE
Jacket: black PVC or grey PVC jacket.
Shield: aluminum foil shield.
drain wire: copper or CCS or CCA drain wire
Messenger: Iron messager or zinic steel messenger. 1.0mm and 1.50mm iron messenger or 1.10mm, 1.13mm, 1.16mm zinc steel messenger
Technical characteristics:
Conductor diameter: 24 AWG
Insulated conductor diameter: 0.93 ± 0.2 mm
Outer cable diameter: 6.80± 0.2 mm
Jacket thickness: 0.80mm-1.00mm
Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Operating temperature: -50°C +50°C (-40°F +122°F)
Packge:305meters/roll/outer carton or 305meters/roll/spool or wooden drum
Packaging & Delivery
| Packaging Detail: | 305meters/roll/carton or spool or wooden drum |
| Delivery Detail: | 15days |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 50 Piece/Pieces 50rolls |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Terms of Payment: T/T 30% deposit upon order, 70% payment before shipment |
| FOB Port | Shenzhen |
| Loading Info | Contact me |
| Packing Info | Contact me |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
