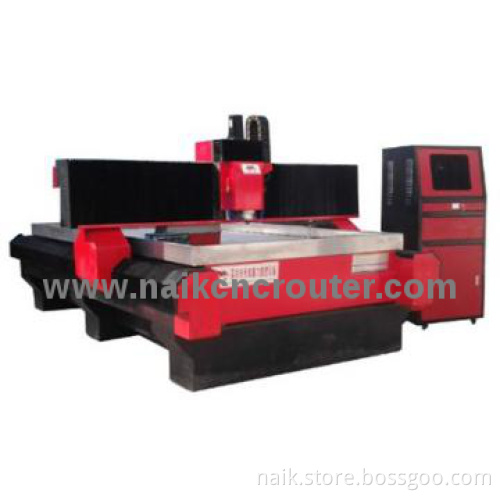

cnc stone engraving machine 11STC-1325
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| stone machine | stone machine |
|---|---|
| Carving Type | Engraving |
| Regional Feature | China |
| use | Art & Collectible, Business Gift, Holiday Decoration & Gift, Home Decoration, Other, Souvenir, Wedding Decoration & Gift |
| Technique | Carved |
| Occasion | April Fool\'s Day, Back To School, Chinese New Year, Christmas, Earth Day, Easter, Father\'s Day, Graduation, Halloween, Mother’s Day, New Year, Other, Thanksgiving, Valentine\'s Day, Wedding |
| Material | Stone |
| Theme | Angel, Animal, Buddhism, Cross, Fairy, Flower, Iceberg, Letters, Love, Mascot, Music, Other, Patriotism, Pyramid, Sports, TV & Movie Character |
| Style | Artificial |
Detail Description
1 Application
All kinds of wood, stone, glass,plastic, metal.
2 Parameter| Item No | 11STC-1325 |
| Platform Size | 1380mm(W)* 2900 mm(L) |
| Max Working Range | 1300mm(W)* 2500 mm(L) |
| Z-Axis Traveling Height | 180mm |
| Feeding Height | 200mm |
| Structure | 8mm thick Heavy-Duty Tubular Steel Frame |
| Table material | 23mm Thickened aluminum alloy |
| Thickness of gantry | 8mm CNC machining &full welded, VSR process |
| Thickness of the sidewall | 25mm, iron casting, CNC machining |
| Sheet metal | 2mm baking paint sheet metal |
| ixed mode | T-clip (Vacuum Table,Pressure roller for option) |
| X.YAxisTransmission | Taiwan Hiwin 3210 Auto Anti-gap&double nut Ball Screw |
| Z Axis T ransmission | Taiwan Hiwin 2510 Auto Anti-gap&double nut Ball Screw |
| Rail Configuration | Taiwan Hiwin 25 Linear Square Guide |
| Positioning Accuracy | ± 0.05/300mm |
| Spindle Power | 3.0KW constant power(4.5KW/5.5KW/6KW for Option) |
| Spindle Rotating Speed | 0-20000r/min |
| Empty Speed | 0-20000mm/min |
| Processing Speed | 0-20000mm/min |
| Resolution | 0.00625/Pulse |
| Converter | 3.0KW Converter (Shenzhen Sunfar Brand) |
| X ,Z,YAxis Dual Driving Motor | France Schneider Servo-driven |
| Movement Control System | Ncstudio original 53B Control System |
| Cooling System | Water Chiller |
| Carving Instruction | G-code,ENG,UOO,MMG,NC |
| Stainless Steel Water Tank | 2mm |
| Collet | 3.175mm,4mm, 6mm, 8mm, 10mm, 12.7mm |
| Movement Way | Gantry Moving |
| N.W | 3500KGS |
| Machine Power | 110/220/380V 50HZ ± 10(lnternal Switch Power) |
| Electric Box | Intergrated computer control cabinet |
Contact: Alexus Ping
Skype:naik.sales11
Email:Alex@sztcsk.cn Mobile:+86-13528817241
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | depends on you |
| FOB Port | Shenzhen |
| Loading Info | depends on you |
| Packing Info | Inner package: plastic filmOutside package;wood case |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
