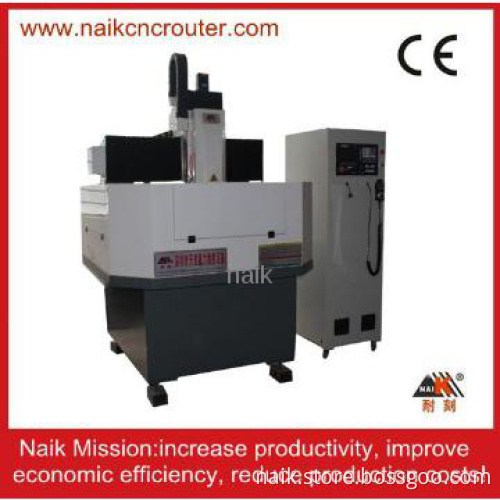

TC-6060 Chinese cnc router metal/cnc router for metal engraving
  • TC-6060 Chinese cnc router metal/cnc router for metal engraving
TC-6060 Chinese cnc router metal/cnc router for metal engraving

TC-6060 Chinese cnc router metal/cnc router for metal engraving

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

industry metal and metal mold

Detail Description

TC-6060 Chinese cnc router metal/cnc router for metal engraving



Product Description

1. With 600mm*600*350mm engraving range;

2. Taiwan HIWIN double nuts ball screw and linear square guide rail ensure the high accuracy;

3. With whole casting iron frame, to ensure the structure stability, low inertia and no distortion;

4. Powerful compatibility for most of software such as: type3, Artcam, Proe, Wentai a variety of CAD/CAM;

5. Scientific design, convenient for removing and changing parts;

6. Suitable for various kinds of metal mould engraving, such as aluminum, copper, gold, and steel etc.

7. TC-6060 Chinese cnc router metal/cnc router for metal engraving.



Application Materials

Suitable for small work piece precisely processing, mainly used for metal, such as aluminum, copper, stainless steel, titanium, zinc etc.

Also suitable for wood, MDF, acrylic, organic glass, PVC, double color board, stone, jade processing.



Application Industries

Suitable for Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.



Guarantee & After-sales service:

Guarantee for one year

24 hour technical support by email or calling

User friendly English manual and Video CD for machine using and maintenance




 Technical Parameter



Platform Size (mm)

650mm* 650mm

Engraving range (mm)

600mm* 600mm

Structure options

Iron struture

Platform material

Casting iron

Table fixed type

T-slot table for max fixturing flexibility

X Axis structure

HIWIN 25 linear square guide rail & HIWIN 25 Ball screw

Y Axis structure

HIWIN 25 linear square guide rail & HIWIN 25 Ball screw

Z Axis structure

HIWIN 25 linear square guide rail & HIWIN 25 Ball screw

Z axis traveling height(mm)

350mm

Working Voltage

220V/380V 50Hz/60Hz

Spindle power (KW)

2.2KW water cooling spindle (3.0,4.5kw for option)

Spindle speed

0-24000 (r/ min)

Max Speed without material

0-20000 mm/ min

Max working speed

0-15000 mm/ min

X Axis Drive motor

Schneider Servo motor

Y Axis Drive motor

Schneider Servo motor

Z Axis Drive motor

Schneider Servo motor

Resolution

0.00625 Pulse

Diameter of cutting tools (mm)

3.175/ 4.0/ 6.0/ 8.0/ 10/ 12.7mm optional

ATC

No

Control system

NcStudio Control System of Shanghai; with computer cabinet

Code formats

G code, U00, mmg, nc, ENG

Cooling system

Water cooling



Machine details with pictures:

All the specifications can be customized as requested!



Pictures of sample:







Company Certificates





Packing



Pictures of our company




We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.

And we offer all kinds of CNC parts.

To know more about our products, please feel free to contact us !

Additional Information

Payment Terms L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order 1
Sample Available NO
FOB Port Shenzhen
Target Market(s) Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
