Sipo Video Door Entry with B/W and Color 1/3-inch CCD Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

wiring	4 wires
Type	Cable Doorbell, Remote Controlled Doorbell
Power Supply Type	DC

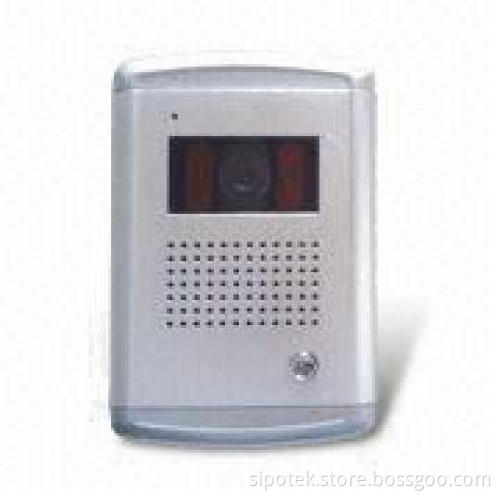

Sipo Video Door Entry

B/W and color 1/3-inch CCD camera with night vision
Outdoor station, door bell, video intercom, audio/ video communication
Watching door entrance, remote lock release
Optional for extended monitors and handset
Works with our all Sipo indoor monitors
Aluminum case
Flush mounting installation
Maximum wiring distance: 50m/165 feet (22AWG, 0.65mm 4 wire)
Wiring: 4 wires
Communications ways: synchronous communications
Scene illumination: 0.1 Lux (300mm from the camera)
Scanning frequency:
- Horizontal: 15.75kHz
- Vertical: 60Hz
Image angular:
- Horizontal: 68 degrees
- Vertical: 55 degrees
Angular adjust:
- Left: 13 degrees
- Right: 13 degrees
- Up: 4 degrees
- Down: 4 degrees
Ambient humidity: 45 to 95% RH
Ambient temperature: -10 to 40 degrees Celsius
Video signal: 1Vp-p 75Ω, PAL or NTSC
Power sources: 12V DC, 160mA
Product dimension (W x H x D): 99 x 165 x 40mm
Packing:
- Inner package: 200 x 130 x 74mm
- Carton size: 720 x 310 x 250mm
- 20 pieces per carton
- Net weight: 0.7kg
- Gross weight: 0.9kg
- Accept: O/A

Payment Terms	L/C, T/T, D/A, D/P, Western Union, Others
Minimum Order	100 pieces
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	30% T/T in advance, balance must be paid before shipping.
FOB Port	Shenzhen
Loading Info	By sea, by air
Packing Info	Cartons
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
