Shenzhen plastic color meters with CE/TUV/ROHS/ISO9001
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
---|---|
Measuring Aperture | 8mm/4mm |
Repeatability | ΔE*ab 0.06 |
Storage | 100pcs standards 20000pcs samples |
Illuminating/Viewing Geometry | 8/d |
Type | Colour Is Chromatic Meter, Cr - 10 Chromatic Meter, HP - 200 Color Difference Instrument, Hampshire Chromatic Meter, Hangzhou Chromatic Meter, Love Lubricious Li Chromatic Meter, Measuring Colored Differential Gauge, Minolta Color Difference Meter, Other, Portable Chromatic Meter, Precision Chromatic Meter |
Measurement Precision | 0..07 |
Measuring Range | 0-100 |
Detail Description

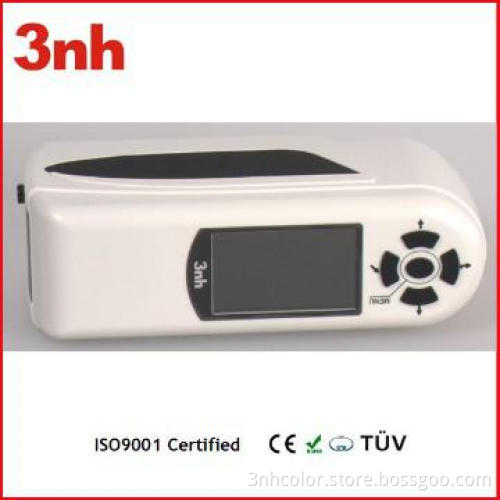

Shenzhen plastic color meters with CE/TUV/ROHS/ISO9001
3nh colorimeter Features:
1. Leading Humanity Design and Convenient Operation
2. Stable Measurement Performance
3. Flexible and Accurate Locating
4. More Measurement Modes
5. PC Software—Realize More Function Expansion
6. Advanced Power Management Design
3nh colorimeter Specifications
Model |
NH310 portable colorimeters |
|
Display Mode |
CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness |
|
Color Difference Formula |
ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter |
|
Illuminating/viewing geometry |
8/d (8°illumination angle/diffuse viewing) |
|
Light Source |
LED blue light excitation |
|
Detector |
Silicon photoelectric diode |
|
Measuring Aperture |
Φ8mm; Φ4mm; Φ8mm extended aperture (optional) |
|
Measuring Conditions |
Observer: CIE 10° Standard Observer |
|
Measuring Range |
L: 0 to 100 |
|
Repeatability |
Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate) |
|
Storage |
100 pcs standard samples; 20000 pcs test samples |
|
Minimum Interval Between Measurement |
Approx. 1 sec |
|
Battery Life |
More than 3000 measurements |
|
Lamp Life |
more than 1.6 million times in 5 years |
|
Display |
TFT True-color; 2.8 inch@(16:9) |
|
Interface |
Model B: USB RS-232: Baud rate 19200bps |
|
Operating Temperature Range |
-10°C to 40°C (14°F to 104°F) |
|
Storage Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
Humidity Range |
less than 85% relative humidity, no condensation |
|
Weight |
500g |
|
Dimensions |
205 x 70 x 100 mm |
|
Size of the Packing |
435 x 205 x 345mm |
|
Standard Accessories |
AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture; Φ4mm Measuring Aperture |
|
Optional Accessories |
Extended Aperture(Φ8mm); Mini-printer; Printer Cable, Universal Test Components, Powder Test Box |
|
Company information ( 3nh colorimeter )
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, 3nh launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
Colorimeter products ( colorimeter )
Company Cerfications
Company Factory
After-Sale Service
3nh provides high-quality comprehensive pre-sale and after-sale service for customers. No matter what requirements the users need, no matter what problems about our products and service the users ask, 3nh customer service center will provide thoughtful and meticulous service. Meanwhile, customer service center will classify user feedbacks. For example, if the problem can be dealt with by 3nh, 3nh will be responsible for it; if the problem belongs to 3nh authorized service center, 3nh customer service center will contact with the authorized service center to solve customer problems or give the appropriate answer as soon as possible.
1.Warranty
1> Warranty will be provided in case of the following circumstances. 3nh offers one year free maintenance service.
a. This product is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.
b. Warranty is only for the failures caused by the quality problem itself.
2> Warranty will not be provided in case of the following circumstances. 3nh can offer paid repair service.
a. Product failure or damage caused by installation, usage, maintenance and safekeeping which haven’t followed the request of operation manual.
b. Product model and serial number are inconsistent with the products.
c. No warranty card and valid proof of purchase.
d. Out of warranty, but can continue to be used after being repaired.
e. Damages caused by disassembly which made by non 3nh technical staff or 3nh authorized service providers.
f. Damages caused by unexpected factors or human factors.
g. Damages caused by force majeure (such as flood, fire, earthquake, etc.).
* Note: 3nh reserves the final interpretation right to the warranty terms.
2. Delivery of Products
a. About product warranty, the freight of delivery from customer to 3nh is to be charged to customer’s account. The freight of delivery from 3nh to customer is at our own expense.
b. About the delivery, products may be delivered to designated place by 3nh authorized service agency or directly delivered to customers by express by 3nh. No matter which delivery method is adopted, if the packaging of the received product is incomplete, or the accessories are incomplete or the damages caused by delivery which affect the product quality, please contact with 3nh authorized service agency or 3nh service center. Meanwhile, please inspect the goods or make photo evidence in the presence of the transportation personnel. After confirming the responsibility, we will provide maintenance or replacement service according to customer requirements.
Service Hotline: 400-033-2311
Additional Information
Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
---|---|
Minimum Order | 2 |
Lead Time / Delivery Time | 2 Day(s) |
Sample Available | YES |
Delivery Details | TT IN ADVANCE |
FOB Port | Shenzhen |
Loading Info | FOB SHENZHEN |
Packing Info | 1 SET/ CARTON |
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
