high quality usb micro cable
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Brand Name | xanuan |
|---|---|
| Model Number | USB3.0 USB2.0 Cable |
| use | keyboard,mouse,morden,printer,scanner,digital came |
| model | micro,mini,2.0,3.0 |
| Type | USB |
| Jacket color | Blue |
Detail Description

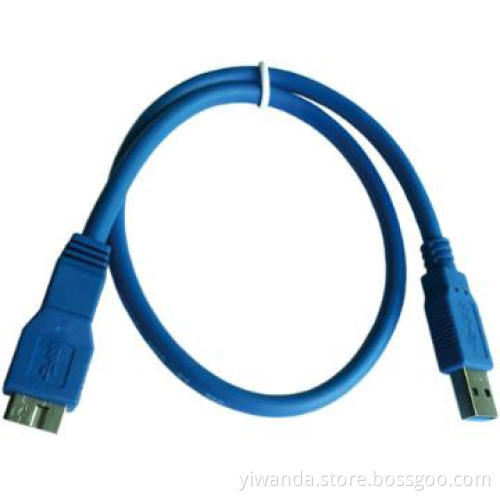

high quality usb micro cable
Features:
| 1.USB3.0 A TYPE M/B TYPE M. |
2.Optional gold and nickel plating. |
| 3.Conductor:pure copper |
| 4.Edition:USB1.0,2.0,3.0 Optional |
| 5.Gauge:30AWG,28AWG,26AWG optional |
6.Length:0.5M,1.5M,2M,5M ,10M,15M,and according to the clients’requirement. |
7.Jacket color: Black,Bule ,Grey,Transparent, and according to the clients’requirement. |
8. Packing: Polybag, blister, Slide card,giftbox ,according to clients\' requirement. |
Electrical:
| 1. 100% open & short test |
| 2. Hi-Pot: DC 300V 10ms |
| 3. Insulation Resistance: 10M OHM /300V Min. |
| 4. Contact Resistance: 0.01 OHM Max. |
| 5.Shield up to 65% braid. |
| 6.Working Temperature: -25oC ~ +85oC |
Mechanical:
| 1.Over mold: PVC 70Pa UL94V-0 Black |
| 2.Pre mold: PE Low Density |
| 3.Contact: Copper Alloy. |
| 4.Insertion Force: 35 N Max. |
| 5.Withdraw Force: 10 N Min |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 500 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Payment Methods: 30%T/T in adcance,70% before delivery |
| FOB Port | Shenzhen |
| Loading Info | shipment:according to your order quantities |
| Packing Info | Packing: PE bag,blister backage,gift boxCarton size: 50*30*31 46*30*30 |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
