LC9353 High quality High Efficiency 3W LED Driver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| input voltage | 100-240vac 50/60hz |
|---|---|
| efficiency | 60% |
| color | white |
| power | 1-3*1W |
| out voltate | 3-12VDC |
| Life | 50000hours |
| Voltage | 220V |
| IP | IP45 |
| Dimmable | No |
| Power | 1-3*1W |
Detail Description

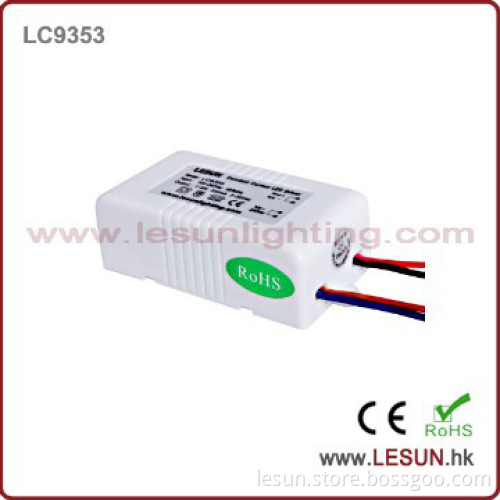

LC9353 High quality High Efficiency 3W LED Driver
Model No: LC9353
Power：1-3x1W
Input Voltage: 100-240Vac
Frequency: 50Hz/60Hz
Efficiency: 80% typical
Power Factor: >0.99
Output Current: 350mA
Voltage: 3-12Vdc
Wattage: 2W
LED no. to drive: 1-3 pcs 1W LED
Ta：40℃
Wiring Way: leads or AC plug
Safety: UL, cUL and CE approved
Dimension: 66Lx36Wx23H (mm)
1. Technical Features:
a. Small size with universal input voltage for worldwide use.
b. This device drives LEDs with Constant Current, resulting in constant brightness and extends life time.
c. Protection against short circuit and overload.
d. Designed to drive 1 to 3 leds Luxeon 1W with 350mA constant current outpuut.
e. IP 67 Waterproof.
f. 2 years warranty
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery within 3-5days upon payment received |
| FOB Port | Shenzhen |
| Loading Info | By air |
| Packing Info | Container loading according to practical goods condition |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
