Citybar Outdoor Full Colour LED Display P40
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Citybar Outdoor | Full Colour LED Display |
|---|---|
| Voltage | 110-220V |
Detail Description

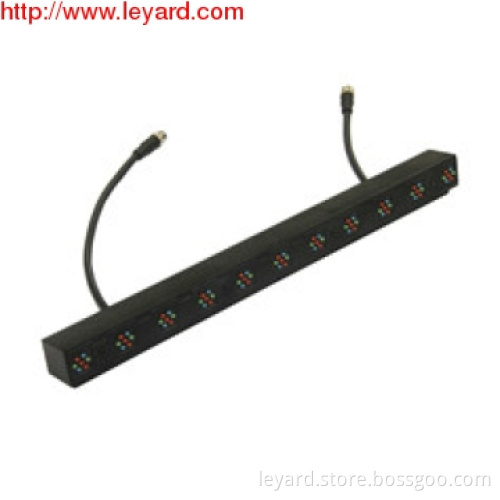

Citybar Outdoor Full Colour LED Display
Product Features of Citybar Outdoor Full Colour LED Display
1. Aluminum alloy shell is of light weight, solidity and not liable to distort.
2. Strip appearance realizes high proficiency in cambered surface display, which frees your display screen from its tablet form and makes it much clever.
3. Grille-type structure is specially designed for building appearance to reach high transmission, so that your building will not be influenced by lighting, and wears a gorgeous appearance by day or night.
4. The citybar outdoor full colour LED display can be densely arranged. Alternatively, it can also be placed as necessary to form different interval distributions. All forms are just for your demand.
5. It can display light effects, graphs, words, animation and video contents intelligently. Therefore, it can be used as an intelligent lighting decoration or a display screen.
6. The citybar outdoor full colour LED display can be applied in any situation you can imagine and can add new colors to your living environment.
Specifications of Citybar Outdoor Full Colour LED Display
| No. | Item | Citybar-40(1R1G1B) | Citybar-40(3R2G2B) |
| 1 | Pixel Configuration | 1R1G1B | 3R2G2B |
| 2 | Physical Pitch (mm) | 40(W)×40(H) | 40(W)×40(H) |
| 3 | Size of Module (mm) | 760(W)×15(H) | 425(W)×37(H)×32(D) |
| 4 | Weight of Unit(g/strip) | 20 | 400 |
| 5 | Pixel Density (spot/strip) | 19 | 11 |
| 6 | Protection Level | IP43 | IP67 |
| 7 | Flatness of cabinet(mm) | ≤1.0 | ≤1.0 |
| 8 | Whit Balance Brightness(After 6500ºK Calibration) | 5 | 10cd/pixel |
| 9 | Color Temperature(K) | 3,200K to 9,300K adjustable | 3,200K to 9,300K adjustable |
| 10 | Horizontal Viewing Angle( °) | 140 | 130 |
| 11 | Vertical Viewing Angle( °) | 70 | 80 |
| 12 | Light center Distance Deviation | < 3% | < 3% |
| 13 | Brightness Uniformity | ≥97% | ≥97% |
| 14 | Color Uniformity | Within ±0.003Cx,Cy | Within ±0.003Cx,Cy |
| 15 | Power Consumption(W/strip ) | 5.7 | 5 |
| 16 | Power Supply | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) |
| 17 | Drive mode | Constant Current Driving | Constant Current Driving |
| 18 | Frame Rate(Hz) | 50&60 | 50&60 |
| 19 | Refresh Rate(Hz) | 1920 | 3840 |
| 20 | Lifetime (Half Brightness)(h) | 100,000 | 100,000 |
| 21 | Temperatures(℃) | Operating :-0-40 | Operating :-20-45 |
| Storage:-10-50 | Storage:-30-60 | ||
| 22 | Humidity(RH) | Storage:10 - 80% | Storage:10 - 90% |
| Operating :10 - 85% | Operating:10 - 95% |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | NO |
| FOB Port | Shenzhen,Yantian |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
