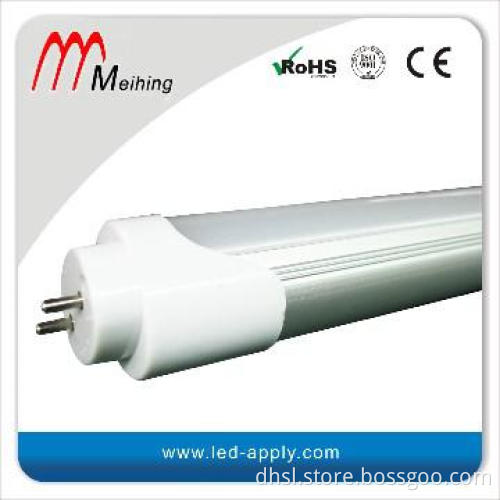

18W 1200mm/4ft T8 led tube lighting smd2835 tube light, led tube light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | white/warm white |
|---|---|
| lumens | 22-25lm/led |
| light source | smd2835 led |
| Life | >50000hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Power | 18W |
| Illuminant | LEDs |
Detail Description
Electrical Schematic Diagram:
Dimension: (unit: mm)
Technical Specifications:
1. Dimension: 1188mm(L) / 26mm (Dia.)
2. Input Voltage: AC:85-265V,AC:100-120V,AC:200-240V,50-60HZ,optional
3. PF(power factor): > 0.92
4. Power efficiency: > 85%
5. Light efficiency: 80-90LM/W
6. Case Material: Aluminum base +PC cover
7. PC cover: Frosted PC cover only
8. CRI: >70
9. CCT: Warm white (WW): 3000-3500k, Nature White(NW): 4000-5000k,
Pure White(PW): 5500-6500k, Cold White(CW): 7000k+.
10. Working Temperature: -40~40 degrees
11. Long lifespan: >50,000 hours
12. Warranty Period: 3 years
13. Certification: CE& ROHS
Features:
- Direct replacement for traditional tubes
- Long lifespan up to 50000hrs
- Work without ballast and less energy consumed
- Slow failure, minimum maintenance cost, the economic choice
- Low operating temperature, produce little heat, recyle without hazardous gasse and materials, green choice. .
- Immediate start, no noise output, no humming and flickering,healthy and safe choice.
- Shock Resistant, much more durable than traditional light sources
- Rated to operate from -40°C to 40°C, perfect for environments with extreme climates
Usage Instruction:
A. When installing LED tube to the hanger with Inductive ballast:
1. Take out the starter from the hanger.
2. Take out the inductive ballast and connect the wire (Refer to the following drawing).
3. Install the LED tube into the hanger directly.
B. Installing LED tube to the hanger with Electronic ballast :
1. Take down the electronic ballast from the lamp hanger.
2. Connect the wire. (Refer to the following drawing)
3. Install the LED tube into the hanger directly.
Applications:
1. Residential Lighting, for Living room, bedroom, kitchen;
2. Office lighting, for office room, conference room, show room;
3. Commercial lighting, for School, hospital, hotel;
4. Industrial lighting, for factory, factory product line;
5. Supermarket, Store, wareshouse;
Warning and Caution:
- Not for use in fully enclosed fixtures.
- Only accredited electrical staff can disassemble and assemble the led tubes. Protective measures should be taken while installation.
- Electronic ballast and starter MUST be taken away from the existing fixture before installing the led tubes.
- LED Tube is of indoor design. Never install tubes in humid environment
Dimension: (unit: mm)
Technical Specifications:
1. Dimension: 1188mm(L) / 26mm (Dia.)
2. Input Voltage: AC:85-265V,AC:100-120V,AC:200-240V,50-60HZ,optional
3. PF(power factor): > 0.92
4. Power efficiency: > 85%
5. Light efficiency: 80-90LM/W
6. Case Material: Aluminum base +PC cover
7. PC cover: Frosted PC cover only
8. CRI: >70
9. CCT: Warm white (WW): 3000-3500k, Nature White(NW): 4000-5000k,
Pure White(PW): 5500-6500k, Cold White(CW): 7000k+.
10. Working Temperature: -40~40 degrees
11. Long lifespan: >50,000 hours
12. Warranty Period: 3 years
13. Certification: CE& ROHS
| Model No. | Size | Power | LED Qty (pcs) | LED Type | Input Voltage | Lumens (frosted cover) |
| MH-T806M10W-C | 600*26*30mm | 10W | 48 | SMD2835 | AC110V/AC220V | 950lm(6000-6500K) |
| MH-T809M12W-C | 900*26*30mm | 12W | 60 | SMD2835 | AC110V/AC220V | 1100lm(6000-6500K) |
| MH-T812M18W-C | 1200*26*30mm | 18W | 96 | SMD2835 | AC110V/AC220V | 1600lm(6000-6500K) |
| MH-T815M24W-C | 1500*26*30mm | 24W | 120 | SMD2835 | AC110V/AC220V | 2160lm(6000-6500K) |
| MH-T818M30W-C | 1800*26*30mm | 30W | 140 | SMD2835 | AC110V/AC220V | 2400lm(6000-6500K) |
Features:
- Direct replacement for traditional tubes
- Long lifespan up to 50000hrs
- Work without ballast and less energy consumed
- Slow failure, minimum maintenance cost, the economic choice
- Low operating temperature, produce little heat, recyle without hazardous gasse and materials, green choice. .
- Immediate start, no noise output, no humming and flickering,healthy and safe choice.
- Shock Resistant, much more durable than traditional light sources
- Rated to operate from -40°C to 40°C, perfect for environments with extreme climates
Usage Instruction:
A. When installing LED tube to the hanger with Inductive ballast:
1. Take out the starter from the hanger.
2. Take out the inductive ballast and connect the wire (Refer to the following drawing).
3. Install the LED tube into the hanger directly.
B. Installing LED tube to the hanger with Electronic ballast :
1. Take down the electronic ballast from the lamp hanger.
2. Connect the wire. (Refer to the following drawing)
3. Install the LED tube into the hanger directly.
Applications:
1. Residential Lighting, for Living room, bedroom, kitchen;
2. Office lighting, for office room, conference room, show room;
3. Commercial lighting, for School, hospital, hotel;
4. Industrial lighting, for factory, factory product line;
5. Supermarket, Store, wareshouse;
Warning and Caution:
- Not for use in fully enclosed fixtures.
- Only accredited electrical staff can disassemble and assemble the led tubes. Protective measures should be taken while installation.
- Electronic ballast and starter MUST be taken away from the existing fixture before installing the led tubes.
- LED Tube is of indoor design. Never install tubes in humid environment
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 25pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 3-5days for samples, 10-12days for batch order. |
| FOB Port | Shenzhen |
| Loading Info | by air, by sea, by express etc. |
| Packing Info | 25PCS/CTN Size: 68 x 23 x 23cmN.W:5kgsG.W:5.5kgs |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
