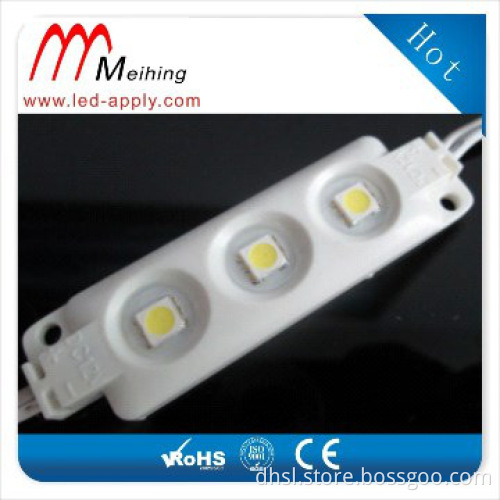

Injection led module 3pcs smd5050 IP67 12v input 68*20mm
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | white,warm white, red, green, blue, yellow |
|---|---|
| leds | smd3528/SMD5050/SMD5630/SMD2835 |
| waterproof | IP67 for outdoor |
| Life | >50,000hours |
| Lumen | 24lm |
| Color | Colorful |
| Temperature | ℃ |
| IP | IP67 |
| Color Mode | Colorful |
| Voltage | 12V |
| Power | 0.24W |
Detail Description
1. Input Voltage: DC12V
2. Color: Red, Green, Blue, Yellow, Warm White, cold White, Available
3. CCT: White, 2800-15000K, available
4. Beam Angle: 140 degree
5. IP Class: IP67
6. Material: ABS & epoxy
7. Wire Length: Distance between modules 90mm
8. Maximum length in serial connection: ≤20pcs
9. Stand length in serial connection: 20pcs
10. Working Temperature: -40~+60℃
Features:
1. Easy installatin, work well under harsh environment, under water!
2. Long Lifespan, more 50,000hours
3. Energy saving , high brightness, Low brightness declines.
LED Moudle Application:
1. Channel Letters Backlighting, Electronic signs , LED Signage, Channel letters, Outdoor Signs
2. Commercial advertising signs backlighting,Border Lighting, Step Lighting, Edge Lighting
3. Advertisement light-box, Concealed Accent Lighting
4. Architectural Lighting, Decorative Lighting, Cove Lighting, Landscape Lighting
2. Color: Red, Green, Blue, Yellow, Warm White, cold White, Available
3. CCT: White, 2800-15000K, available
4. Beam Angle: 140 degree
5. IP Class: IP67
6. Material: ABS & epoxy
7. Wire Length: Distance between modules 90mm
8. Maximum length in serial connection: ≤20pcs
9. Stand length in serial connection: 20pcs
10. Working Temperature: -40~+60℃
| Model No. | LED Type&Qty. | Size (mm) | Power (W) |
Description | Color | Lumens |
| MH-6820-3d3528 | 3pcs smd3528 | 68*20 | 0.3 | UL1007，20#Grey&white wires, Gray wire as\"+\"; White wire as \"-\", wire length 100mm. ABS Material; +3M adhesive tape at back side; Package: Anti-stastic package+carton; IP67 waterproof; |
Red | 3.3 |
| Green | 9.0 | |||||
| Blue | 2.7 | |||||
| Yellow | 3.0 | |||||
| White | 18.0 | |||||
| Warm White | 16 | |||||
| MH-6820-3d5050 | 3PCS SMD5050 | 68*20 | 0.72 | UL1007，20#Grey&white wires, Gray wire as\"+\"; White wire as \"-\", wire length 100mm. ABS Material; +3M adhesive tape at back side; Package: Anti-stastic package+carton; IP67waterproof; |
Red | 12 |
| Green | 18 | |||||
| Blue | 11 | |||||
| Yellow | 12 | |||||
| White | 54 | |||||
| Warm White | 51 | |||||
| MH-6820-3d5630 | 3PCS SMD5630 | 68*20 | 1.2 | UL1007，20#Grey&white wires, Gray wire as\"+\"; White wire as \"-\", wire length 100mm. ABS Material; +3M adhesive tape at back side; Package: Anti-stastic package+carton; IP67 waterproof; |
white | 120 |
| Warm White | 110 | |||||
| MH-5534-4d5050 | 4PCS SMD5050 | 55×34 | 1.44 | UL1007，20#Grey&white wires, Gray wire as\"+\"; White wire as \"-\", wire length 100mm. ABS Material; +3M adhesive tape at back side; Package: Anti-stastic package+carton; IP67 waterproof; |
Red | 4.4 |
| Green | 12.0 | |||||
| Blue | 3.6 | |||||
| Yellow | 4.0 | |||||
| White | 68.0 | |||||
| Warm White | 65 | |||||
| MH-5534-4d2835 | 4pcs SMD2835 | 55×34 | 1.44 | UL1007，20#Grey&white wires, Gray wire as\"+\"; White wire as \"-\", wire length 100mm. ABS Material; +3M adhesive tape at back side; Package: Anti-stastic package+carton; IP67 waterproof; |
white | 90 |
Features:
1. Easy installatin, work well under harsh environment, under water!
2. Long Lifespan, more 50,000hours
3. Energy saving , high brightness, Low brightness declines.
LED Moudle Application:
1. Channel Letters Backlighting, Electronic signs , LED Signage, Channel letters, Outdoor Signs
2. Commercial advertising signs backlighting,Border Lighting, Step Lighting, Edge Lighting
3. Advertisement light-box, Concealed Accent Lighting
4. Architectural Lighting, Decorative Lighting, Cove Lighting, Landscape Lighting
Additional Information
| Payment Terms | T/T, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 1000pcs |
| Lead Time / Delivery Time | 1 Day(s) |
| Sample Available | YES |
| Delivery Details | 1-3days normally. |
| FOB Port | Shenzhen |
| Loading Info | by air, by sea, by international express etc. |
| Packing Info | 20pcs per string, 10strings per bag, 12bags per carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
