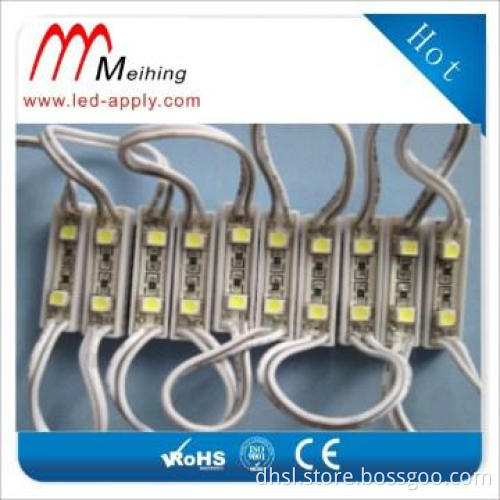

led module DC12v smd3528 2pcs size 26*7*7mm

led module DC12v smd3528 2pcs size 2677mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	white,warm white, red, green, blue, yellow
leds	smd3528
waterproof	IP67for outdoor
Life	>50,000hours
Lumen	24lm
Color	Colorful
Temperature	℃
IP	IP67
Color Mode	Colorful
Voltage	12V
Power	0.24W

Detail Description

1. Input Voltage: DC12V
2. Color:         Red, Green, Blue, Yellow, Warm White, cold White, Available
3. CCT:          White, 2800-15000K, available
4. Beam Angle: 120 degree
5. IP Class:       IP67
    6. Material:       ABS & epoxy
7. Wire Length:   Distance between modules 90mm
8. Maximum length in serial connection:      ≤20pcs
9. Stand length in serial connection:          20pcs
10. Working Temperature:        -40~+60℃

Models

Spec.

Color

LED

LED Qty.

Input Vol.

Power/pcs

Wire Length（mm)

Size(mm)

DH2607-2W3528R

2pcs smd3528

Red

3528

DC12V

0.24W

45mm

26*7*4

DH2607-2W3528G

Green

DH2607-2W3528B

Blue

DH2607-2W3528Y

Yellow

DH2607-2W3528W

White

DH3912-3W3528R

3pcs smd3528

Red

3528

DC12V

0.24W

60mm

45*12*7

DH3912-3W3528G

Green

DH3912-3W3528B

Blue

DH3912-3W3528Y

Yellow

DH3912-3W3528W

White

DH6612-3W3528R

3pcs smd3528

Red

3528

DC12V

0.24W

90mm

66*12*7

DH6612-3W3528G

Green

DH6612-3W3528B

Blue

DH6612-3W3528Y

Yellow

DH6612-3W3528W

White

DH7512-3W3528R

3pcs smd3528

Red

3528

DC12V

0.24W

90mm

75*12*7

DH7512-3W3528G

Green

DH7512-3W3528B

Blue

DH7512-3W3528Y

Yellow

DH7512-3W3528W

White

DH3232-3W3528R

4pcs smd3528

Red

3528

DC12V

0.48W

100mm

35*35*5

DH3232-3W3528G

Green

DH3232-3W3528B

Blue

DH3232-3W3528Y

Yellow

DH3232-3W3528W

White

DH4512-3W5050R

2pcs smd5050

Red

5050

DC12V

0.72

90mm

45*12*7

DH4512-3W5050G

Green

DH4512-3W5050B

Blue

DH4512-3W5050Y

Yellow

DH4512-3W5050W

White

DH7512-3W5050R

3pcs smd5050

Red

5050

DC12V

0.72W

90mm

75*12*8

DH7512-3W5050G

Green

DH7512-3W5050B

Blue

DH7512-3W5050Y

Yellow

DH7512-3W5050W

White

DH7512-3W5050

3pcs smd5050 RGB

RGB

5050

DC12V

0.72W

90mm

75*12*8

DH3535-3W5050R

3pcs smd5050

Red

5050

DC12V

0.72W

100mm

35*35

DH3535-3W5050G

Green

DH3535-3W5050B

Blue

DH3535-3W5050Y

Yellow

DH3535-3W5050W

White

DH3535-3W5050RGB

RGB

DH3535-4W5050R

4pcs 5050（iron house, plastical house optional）

Red

5050

DC12V

0.72W

100mm

35*35

DH3535-4W5050G

Green

DH3535-4W5050B

Blue

DH3535-4W5050Y

Yellow

DH3535-4W5050W

White

DH3535-4W5051RGB

RGB

Features:
1. Easy installatin, work well under harsh environment, under water!
2. Long Lifespan, more 50,000hours
3. Energy saving , high brightness, Low brightness declines.

LED Moudle Application:
1. Channel Letters Backlighting, Electronic signs , LED Signage, Channel letters, Outdoor Signs
2. Commercial advertising signs backlighting,Border Lighting, Step Lighting, Edge Lighting
3. Advertisement light-box, Concealed Accent Lighting
4. Architectural Lighting, Decorative Lighting, Cove Lighting, Landscape Lighting

Additional Information

Payment Terms	T/T, Western Union, Money Order, Paypal
Minimum Order	1000pcs
Lead Time / Delivery Time	1 Day(s)
Sample Available	YES
Delivery Details	1-3days normally.
FOB Port	Shenzhen
Loading Info	by air, by sea, by international express etc.
Packing Info	20pcs per string, 10strings per bag, 12bags per carton
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
