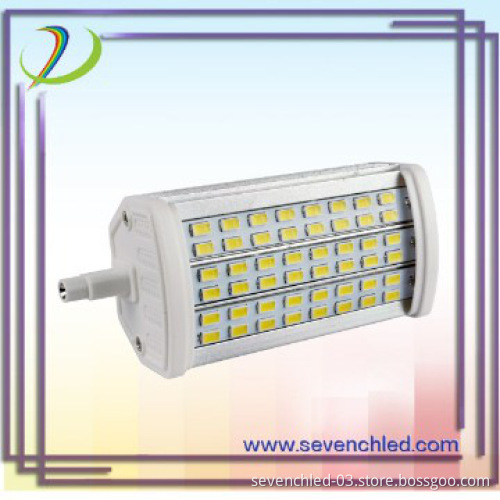

double end r7s led 118mm 14w samsung chip with 3 years warranty
  • double end r7s led 118mm 14w samsung chip with 3 years warranty
double end r7s led 118mm 14w samsung chip with 3 years warranty

double end r7s led 118mm 14w samsung chip with 3 years warranty

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Dimension 118(L)x45(W)x40(H)mm
LED quantity 48pcs samsung 5630 SMD
Dimmable can be dimmable
Net weight 180g/pc
Warranty 3 years
Life 50000 hours
Shape Corn Light
Lamp Base Full Range
Light Source Chip SAMSUNG
Dimmable Yes
Lamp Holder RX7S
Illuminant SMD
Color Tones Cool Color
Power Storage or Not Yes
Voltage 90-260V
Package Yes
Material Aluminum
Power 14w

Detail Description



double end r7s led 118mm 14w



 LED R7S advantage

1 High brightness LED R7S with Sumsung chip: 5630 smd,100lm/w;



2 Good Color rendering index:Ra>83,the goods looks elegant;


3 Beam angle as wide as 180degree.


4 Using Isolated power supply,the light work stable and safety.


5 Aluminum cover:excluded aluminum,good heating dissipation;


6 NO MOQ,3-5 days fast lead time,3 years warranty.




Item NO CH-R7S-5630-14W
LED samsung 5630SMD 48pcs
Power 14W
Voltage 85-265V AC
Lumen 1300LM
Base Double Ended R7S 118mm
Dimensions 118(L)x45(W)x40(H)mm
Rotated angle 180°
Material Extruded aluminum
CCT 2700-3000K
4000-4500K
6000-6500K
LED Driver Isolated power supply
Weight  180g/pc
Warranty 3 years

LED R7S dimension

LED R7S specification

1)No mercury,No UV & infrared in beam

2)Isolated Power Supply inside,it\'s more safe and better for heat dissipation.

3)Extruded aluminum is good at heat dissipation,surface temperature usually stay below 65°

4)Surface of aluminum was protected with being oxy-genated.

5)We use quality Rubycon capacitors

6)Service time is up to 50,000h,20times than halogen r7s lamp,8times than energy-saving r7s lamps

7)OEM or ODM are welcome,we are aimed to work with you together.

8)Base type: Double-ended R7s

9)Beam angle is as wide as 180







 78mm 8w           118mm 14W/15w         138mm 16W/17w               189mm 20W/23w



78mm 8w r7s led light fully replace 60w philips r7s halogen
118mm 14W15w r7s led light fully replace 100w/150w philips r7s halogen
138mm 16w/17w r7s led light fully replace 150w/200w philips r7s halogen
189mm 20w/23W r7s led light fully replace 200w/250w philips r7s halogen



LED R7S Installation:

led r7s package

led r7s manufacturer


If any questions about led r7s,welcome to add my skype chled10

Additional Information

Payment Terms T/T, Western Union, Money Order, Paypal
Minimum Order 1
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details sa,ples, 2-4 days; 500pcs 5-8 days; 4000pcs, 10-15 days
FOB Port Shenzhen
Loading Info DHL 3-4 days FEDEX, UPS,TNT are available
Packing Info 1 piece led r7s/anti-static poly bag/one inner box133pcs in one cartonColor box packing could be choosed
Target Market(s) North America, Eastern Europe, Latin America, Western & Southern Europe, Northern Europe
