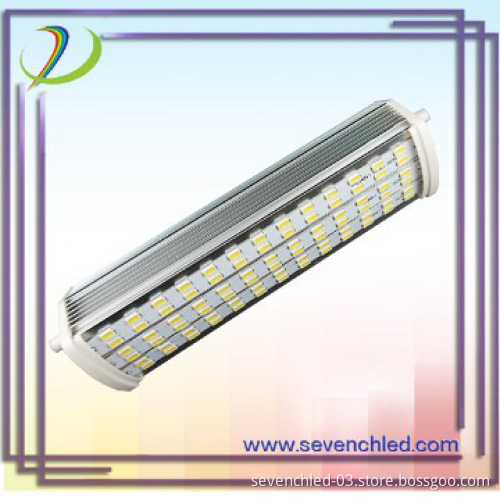

189mm 20W R7S samsung SMD5630 Energy saving light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Energy saving light Power | 20W |
|---|---|
| CRI | >85 |
| lumen | 1900Lm |
| Base | R7S/RX7S |
| Power factor | >0.95 |
| Life | 50,000hrs |
| Lamp Base | R7S |
| Shape | Corn Light |
| Color Tones | Warm Color |
| Light Source Chip | SAMSUNG |
| Lamp Holder | RX7S |
| Illuminant | SMD |
| Material | ABS, Acrylic, Aluminum |
| Voltage | 90-260V |
| Dimmable | No |
| Package | Yes |
| Power Storage or Not | No |
| Power | 0.2W/pcs Samsung SMD5630 |
Detail Description
189mn 20W R7S/RX7S SMD5630 Energy saving light-----100%Original factory:
1)Product Parameters:
① Electrical parameter
② Physical parameter
2)Luminous flux attenuation:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
3)Workshop and Aging:
4)Installation and Application:
①When install or replace, please shut off power supply
②Installation or failure, professionals install or uninstall and maintenance
③Please don\'t take apart or repack the products
④Non-waterproof use only
⑤Picture as bellows:
5)Packing:
Innerr packing size：195(L)x60(W)x43(H)mm
Outer packing size：480(L)x330(W)x350(H)mm 80PCS/Carton
22KG/Carton
6)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.
1)Product Parameters:
① Electrical parameter
| Voltage | 86-265Vac | Power | 20W |
| Frequency | 50/60Hz | Power factor | >0.95PF |
| Efficiency | >86% | Show index | >85Ra |
| Color Temperature | 2700-6500K | Protection grade | IP20 |
| Flux | 1930LM±10% | Life expectancy | 30000-50000H |
| Operating Temperature | -20~+65℃ | Storage Temperature | -20～+80℃ |
| Power Supply | Constant current led driver | Temperature rise | <35℃ |
| Lamp holder | R7S | Size | 189(L)*45(W)*40(H)mm |
| Net weight | 250g | Surface treatment | Anodic Oxidation |
| Quantity | 78PCS 5630 | Material quality | Aluminium |
| Beam Angle | 180° |
2)Luminous flux attenuation:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
3)Workshop and Aging:
4)Installation and Application:
①When install or replace, please shut off power supply
②Installation or failure, professionals install or uninstall and maintenance
③Please don\'t take apart or repack the products
④Non-waterproof use only
⑤Picture as bellows:
5)Packing:
Innerr packing size：195(L)x60(W)x43(H)mm
Outer packing size：480(L)x330(W)x350(H)mm 80PCS/Carton
22KG/Carton
6)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 3 Days for samples;5-7days for above 500pcs |
| FOB Port | Shenzhen |
| Loading Info | By Express or air for small orders\'By sea for big orders. |
| Packing Info | Inner packing size:195(L)x60(W)x43(H)mm Outer packing size:480(L)x330(W)x350(H)mm 80PCS/Carton 22KG/Carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
