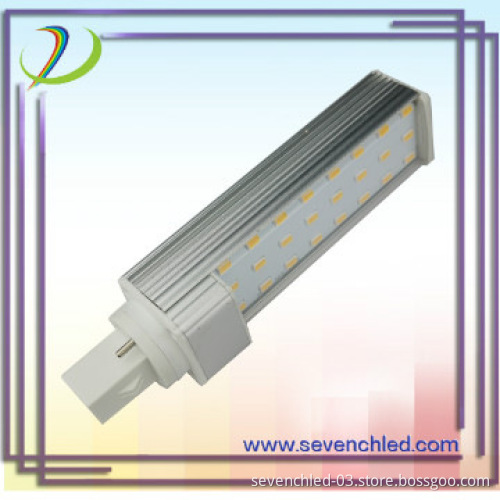

Dimmable 10W LED G24 LED corn light-----100%Original factory
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Power factor | >0.95 |
|---|---|
| LED G24 LED corn light power | 10W |
| Illmunination | 900lm |
| Base | GX24/G24/E27 |
| Length | 148mm |
| Life | 50,000hrs |
| Shape | Corn Light |
| Color Tones | Warm Color |
| Light Source Chip | SAMSUNG |
| Dimmable | Yes |
| Illuminant | SMD |
| Lamp Holder | E27, G24, G24X |
| Material | ABS, Acrylic, Aluminum |
| Voltage | 90-260V |
| Package | Yes |
| Lamp Base | E27, G24, G24X |
| Power Storage or Not | No |
| Power | 0.2w/pcs SMD5630 |
Detail Description
Dimmable 10W LED G24 LED corn light power:10W
Illmunination:900lm
Base:G24/GX24/E27
Power factor:>0.95
Length:148mm
1)Product Parameters:
2)Luminous flux attenuation figure:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
4)G24 and GX24 Comparision:
5)Installation instruction:
①When install or replace, please shut off power supply
②Installation or failure, professionals install or uninstall and maintenance
③Please don\'t take apart or repack the products
④Non-waterproof use only
⑤Picture as bellows:
6)Packing:Inner packing size：35*35*185mm
Outer packing size：480*350*330mm 192PCS/Carton
29KG/Carton
7)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.
Illmunination:900lm
Base:G24/GX24/E27
Power factor:>0.95
Length:148mm
1)Product Parameters:
- Electrical parameter
| Voltage | 86-265Vac | Power | 10W |
| Frequency | 50/60Hz | Power factor | >0.95PF |
| Efficiency | >86% | Show index | >80Ra |
| Color Temperature | 2700-6500K | Protection grade | IP20 |
| Flux | 800LM-900lm | Life expectancy | 30000-50000H |
| Operating Temperature | -20~+65℃ | Storage Temperature | -20～+80℃ |
| Power Supply | Constant current led driver | Temperature rise | <35℃ |
- Physical parameter
| Lamp holder | G24/G23/E27 | Size | 148(L)*35(W)*35(H)mm |
| Net weight | 130g | Surface treatment | Anodic Oxidation |
| Led chip | Samsung 5630 | Material quality | Aluminium+PC |
| Beam Angle | 120° |
2)Luminous flux attenuation figure:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
4)G24 and GX24 Comparision:
5)Installation instruction:
①When install or replace, please shut off power supply
②Installation or failure, professionals install or uninstall and maintenance
③Please don\'t take apart or repack the products
④Non-waterproof use only
⑤Picture as bellows:
6)Packing:Inner packing size：35*35*185mm
Outer packing size：480*350*330mm 192PCS/Carton
29KG/Carton
7)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 3days for small orders;5-7days for big orders. |
| FOB Port | Shenzhen |
| Loading Info | By express/air for small orders;By sea for big orders. |
| Packing Info | Inner packing size:35*35*185mm Outer packing size:480*350*330mm 192PCS/Carton 29KG/Carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
