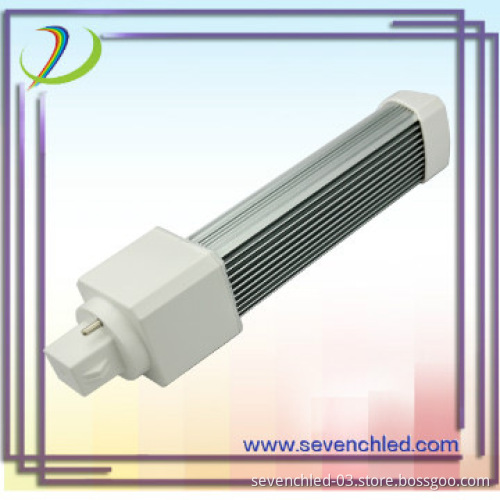

12W PLC LED G24 led corn light-----100%Original factory
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| PLC LED G24 led corn light power | 12W |
|---|---|
| Illumination | 1050lm |
| Base | GX24/G24/E27 |
| Power factor | >0.95 |
| CRI | 83 |
| Life | 50,000hrs |
| Shape | Corn Light |
| Color Tones | Warm Color |
| Light Source Chip | SAMSUNG |
| Illuminant | SMD |
| Lamp Holder | E27, G24, G24X |
| Material | ABS, Acrylic, Aluminum |
| Voltage | 90-260V |
| Dimmable | No |
| Package | Yes |
| Lamp Base | E27, G24, G24X |
| Power Storage or Not | No |
| Power | 0.5W/pcs SMD5630 |
Detail Description
PLC LED G24 led corn light power:12W
Illumination:1050lm
Base:GX24/G24/E27
Power factor:>0.95
CRI:83
1)Product Parameters:
2)Luminous flux attenuation:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
4)Installation instruction:
5)Packing:
packing size：35*35*185mm
Outer packing size：480*350*330mm 192PCS/Carton
29KG/Carton
Illumination:1050lm
Base:GX24/G24/E27
Power factor:>0.95
CRI:83
1)Product Parameters:
- Electrical parameter
| Voltage | 86-265Vac | Power | 12W |
| Frequency | 50/60Hz | Power factor | >0.95PF |
| Efficiency | >86% | Show index | >80Ra |
| Color Temperature | 2700-6500K | Protection grade | IP20 |
| Flux | 960LM-1150lm | Life expectancy | 50000H |
| Operating Temperature | -20~+65℃ | Storage Temperature | -20～+80℃ |
| Power Supply | Constant current led driver | Temperature rise | <35℃ |
- Physical parameter
| Lamp holder | G24/G23/E27 | Size | 185(L)*34(W)*34(H)mm |
| Net weight | 130g | Surface treatment | Anodic Oxidation |
| Quantity | 20pcs samsung 5630 | Material quality | Aluminium+PC |
| Beam Angle | 120° |
2)Luminous flux attenuation:
<1>.LED decay curve data in environmental temperature above 25 ℃ and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:
4)Installation instruction:
5)Packing:
packing size：35*35*185mm
Outer packing size：480*350*330mm 192PCS/Carton
29KG/Carton
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | 3days for samples;5-7days for above 500pcs. |
| FOB Port | Shenzhen |
| Loading Info | By express/Air for small orders;By sea for big orders. |
| Packing Info | Inner packing size:35*35*185mm Outer packing size:480*350*330mm 192PCS/Carton 29KG/Carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
