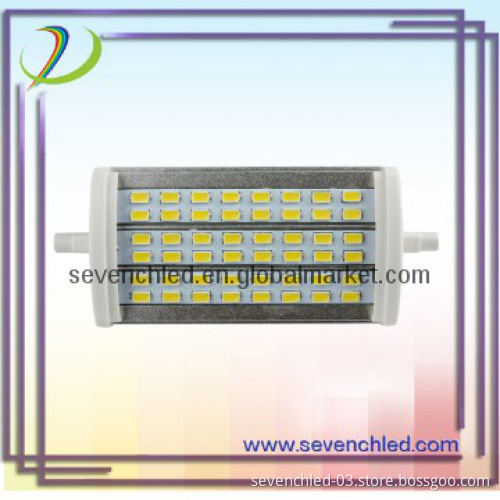

14W 48pcs Samsung SMD5630 Dimmable LED-----100%Original factory
  • 14W 48pcs Samsung SMD5630 Dimmable LED-----100%Original factory
14W 48pcs Samsung SMD5630 Dimmable LED-----100%Original factory

14W 48pcs Samsung SMD5630 Dimmable LED-----100%Original factory

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Bean Angle 180degree
Lumen 1300Lm
Base R7S/RX7S
Power factor >0.95
CRI 83Ra
Life 50,000hrs
Lamp Base R7S
Shape Corn Light
Color Tones Warm Color
Light Source Chip SAMSUNG
Dimmable Yes
Lamp Holder RX7S
Illuminant SMD
Material ABS, Acrylic, Aluminum
Voltage 90-260V
Package Yes
Power Storage or Not No
Power 0.2W/pcs SAMSUNG SMD5630

Detail Description

14W 48pcs Samsung SMD5630 Corn LED light-----100%Original factory:

1)Product Parameters:
①
Electrical parameter
             Voltage 86-265Vac Power 14W
Frequency 50/60Hz Power factor >0.95PF
Efficiency >86% Show index >82Ra
Color Temperature 2700-6500K         Protection grade IP20
Flux 1250-1300lm         Life expectancy 30000-50000H
Operating Temperature -20~+65℃ Storage Temperature -20~+80℃
Power Supply Constant current led driver Temperature rise <35℃
② Physical parameter
Lamp holder R7S Size 118(L)*45(W)*40(H)mm
Net weight 180g Surface treatment Anodic Oxidation
Quantity 48PCS 5630 Material quality Aluminium
Beam Angle 18
 2)Luminous flux attenuation figure:



<1>.LED decay curve data in environmental temperature above 25  and 24 hours normally on after 1000 hours aging test.
<2>.LED luminous flux attenuation associated with lamps and lanterns use environment, the higher the temperature, the longer you use and the faster attenuation.
3)Photomatric data:

4)Workshop and Aging

5) Installation instruction:

    ①When install or replace, please shut off power supply
    ②Installation or failure, professionals install or uninstall and maintenance
    ③Please don\'t take apart or repack the products
    ④Non-waterproof use only
    ⑤Picture as bellows


 6)Packing:


Inner packing size126(L)x60(W)x43(H)mm
Outer packing size:480(L)x330(W)x350(H)mm  133PCS/Carton
                 25KG/Carton

7)Storage:
When product is not used, should put in packing, storage environment temperature and relative humidity should be accord with the requirement of product, there should be no corrosive gas of the warehouse or products, and no strong mechanical vibration, impact and role of strong magnetic fields. Packing should be at least 20cm high from the ground, don\'t let water immersion.





Additional Information

Payment Terms L/C, T/T, Western Union, Paypal
Minimum Order 100
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details 3 days for samples;5-7days for above 500pcs.
FOB Port Shenzhen
Loading Info By express or air for sampels or small orders;By sea for big orders.
Packing Info Inner packing size:126(L)x60(W)x43(H)mm Outer packing size:480(L)x330(W)x350(H)mm 133PCS/Carton ,25KG/Carton
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
